Temperature sensor with housing TF25+ RS485 Modbus

0-10 VRS-485Modbus

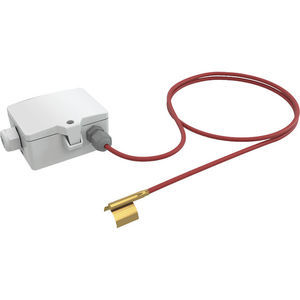

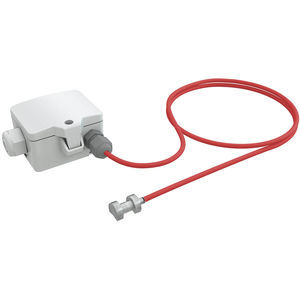

Cable sensor for temperature measurement in HVAC or refrigeration applications. In combination with a thermowell, the TF25 can also be used for temperature measurement in liquid media. Depending on the application requirements, different PVC, silicone, high-temperature silicone and fibreglass cables are available. • Application/type : Cable sensor • Purpose : Measure values • Measured values : temperature • Interface : RS485 Modbus, Active, 0..5 V, 0..10 V • Configuration : USEapp, uConfig, BUS, jumper, DIP switches • Sensor : SI-Protection against permeation of humidity and mechanical stress (e.g. vibration) • Output voltage : 0..10 V or 0..5 V, adjustable via jumper, live-zero configuration via app or uConfig, min. load 10 kΩ • Network technology : RS485 Modbus • Data transmission : RTU, half-duplex, baud rate 9.600, 19.200, 38.400 or 57.600, parity: none (2 stop bits), even or odd (1 stop bit) • Operating range temperature (°C) : -50..+160 • Operating ranges temperature (°C) : -50..+160 • Output signal temperature : scaling analogue output, 0..+160 °C (default setting), selectable from 4 temperature ranges -50..+50 | -20..+80 | -15..+35 | -10..+120 | 0..+50 | 0..+100 | 0..+160 | 0..+250 °C, optionally configurable via app or uConfig • Operating range humidity : max. 85% rH short term condensation • Accuracy temperature : ±0,5 K (typ. at 21 °C), within default measuring range, offset setting via app or uConfig • Power supply : 15..35 V = SELV, 19..29 V ~ SELV • Power consumption : max. 2,5 W (24 V =), 4,3 VA (24 V ~)
