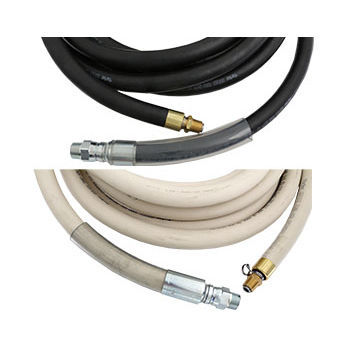

Hot water hose 940 - 000100 seriesfor chemical applicationswashdown
Add to favorites
Compare this product
Characteristics
- Use
- for hot water
- Applications
- for chemical applications
- Other characteristics
- washdown
- Inner diameter
0.75 in
- Outer diameter
1.156 in, 1.25 in
- Pressure
20.7 bar
(300.228 psi)- Temperature
93.3 °C
(199.94 °F)
Description
Cost effective, high-quality hot water washdown hose assemblies designed to complement the HCS and HCX Water Washdown Stations for use in washdown applications in industrial and chemical plants. Hoses are available in Black General Purpose or White Creamery.
Design Features
4 ply textile reinforcement
EPDM tube and cover
Brass and Zinc plated steel swivel fittings
Strain relief on station end
Specifications
Sizes: 25ft, 50ft, 75ft
½” MNPT x ¾” MNPT end connections
Maximum Operating Pressure: 300 PSIG (20.7 BAR)
Maximum Operating Temperature: 200°F (93.3°C)
