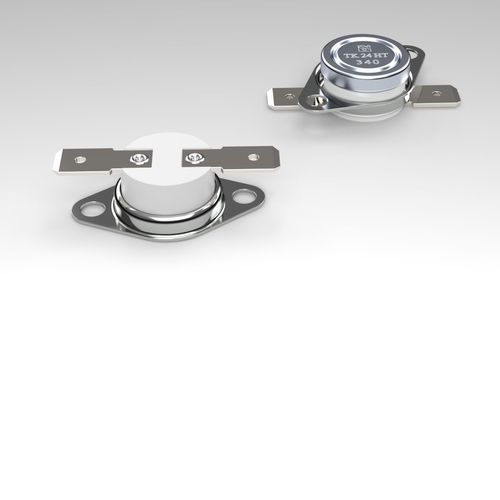

Bimetallic thermostat TK24HT series

flangehigh-temperature

Thermostat ТК24 (DIN EN 60730-1) is a temperature sensitive device, with cyclic operation. It is designed to maintain the needed temperature between two predetermined temperature limits, automatically controlling the on-and-off of the electrical circuit. APPLICATION: This thermostat is widely used in a broad range of temperature control applications for consumer, industrial and commercial products. Note: Besides its variety of standard configurations the thermostat can also be customized to the specific technical needs of the customer. Number of automatic cycles, at rated current 10 А and power coeff. 0.95, not less than - 10000 Tolerance of operating temperature, °C - ±6 Reset temperature, lower than operating temperature, °C, by - 60±10; 100±10; 150±10 Transient resistance, Ω, not more - 0.05 Contact operating time, ms, not more - 3 Electric strength of insulation, V, not less than - 1500 Insulation resistance, MΩ, not less than - 50 Heating speed, K/min - minimum-0.1, maximum-1.0 Degrees of protection provided by enclosure - IP4X
