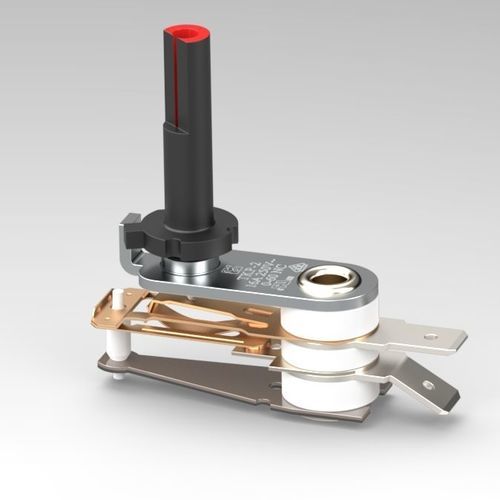

Adjustable thermostat TKP series

NONC

Thermostat TKP (DIN EN 60730-1) is a temperature sensitive device intended to maintain the temperature of the appliances within a predetermined range by automatically switching the power supply off or on. The operating temperature is adjusted by rotating the shaft. This thermostat will reset after the temperature has dropped. APPLICATION: This thermostat is designed for smooth regulation of temperature in variety of heating and cooling appliances. Note: The customer can also place orders according to specific required parameters, which should be agreed with the manufacturer. Number of automatic cycles, at rated current 16 А and power coeff. 0.95, not less than - 100000 Control ranges, °C - min. 60; max 225 Tolerance of operating temperature, °C - ±3; ±5; ±8; ±10 Reset temperature, lower than operating temperature, °C, by - 5; 8; 10; 15 Transient resistance, Ω, not more - 0.01; 0.05 Electric strength of insulation, V, not less than - 1500 Insulation resistance, MΩ, not less than - 50 Turning range, angle degree - 270°; 306° Heating speed, K/min - 1.0
