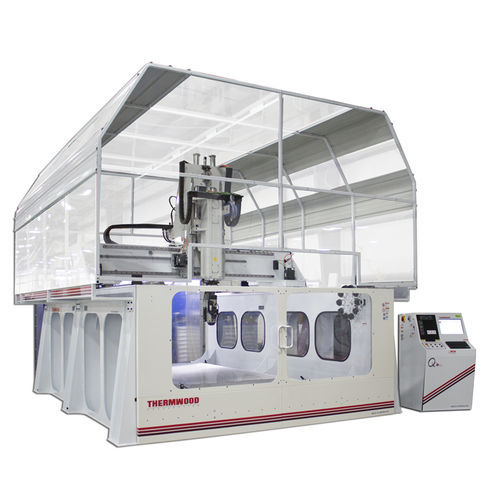

CNC router MULTIPURPOSE 77

5-axisfor plasticsfor composites

Heavy-duty, high-speed contained system for the machining of large aerospace and composite materials. Available Table Sizes: 5'x10', 10'x10', 10'x20', 10'x30', 10'X40' and up in 10' increments in length 12 HP 24,000 RPM Router with a 4 Position Automatic Tool Changing System (Standard) 19 HP 24,000 RPM Router with a 4 Position Bar Style Automatic Tool Changing System (Optional) 16 HP 24,000 RPM Router with a 4 Position Bar Style Automatic Tool Changing System (Optional) Multi-Function Vacuum Table Section (Optional) Extended Z Axis: 36" vertical (Standard) Extended Z Axis: 48" vertical (Optional) Extended Z Axis: 60" vertical (Optional) 5 Axis Chip Collection Hood (Optional) Six Position Under Gantry Bar Style Automatic Tool Changer (Standard on 5' wide machines) Twelve Position Under Gantry Bar Style Automatic Tool Changer (Standard on 10' wide machines) Constant Tip Speed Machining (Standard) Tip Center Rotation (Standard) Dust Extraction Booth (Optional) Automatic Tool Length Measurement (Optional) Automatic Tool Length Sensor (Standard) Automatic Lubrication System (Standard) Gantry Lighting System (Optional) Accu-Lube Mist Coolant System (Optional) Machine Canopy (Optional) Impact Resistant Five Axis Head (Standard) Continuous C Axis (Optional) Remote Start/Stop Pedestal (Optional) Three-Dimensional Laser Compensated Axis Alignment Siemens Intelligent Servo Drives Throughout Thermwood SuperControl Machine Training and Installation
