CNC router MULTIPURPOSE 45
3-axisdouble-spindle1-spindle

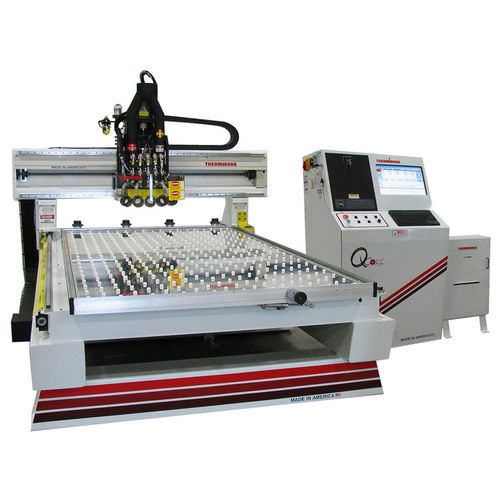

CNC router - MULTIPURPOSE 45 - Thermwood - 3-axis / double-spindle / 1-spindle
CNC router - MULTIPURPOSE 45 - Thermwood - 3-axis / double-spindle / 1-spindle
CNC router - MULTIPURPOSE 45 - Thermwood - 3-axis / double-spindle / 1-spindle - image - 2
CNC router - MULTIPURPOSE 45 - Thermwood - 3-axis / double-spindle / 1-spindle - image - 3
CNC router - MULTIPURPOSE 45 - Thermwood - 3-axis / double-spindle / 1-spindle - image - 4
CNC router - MULTIPURPOSE 45 - Thermwood - 3-axis / double-spindle / 1-spindle - image - 5
CNC router - MULTIPURPOSE 45 - Thermwood - 3-axis / double-spindle / 1-spindle - image - 6
CNC router - MULTIPURPOSE 45 - Thermwood - 3-axis / double-spindle / 1-spindle - image - 7
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
3-axis
Number of spindles
1-spindle, double-spindle
Treated material
wood, for aluminum, for composites, for plastics, non-ferrous
Other characteristics
with automatic tool changer

Description

Heavy-duty three axis designed for composites, tooling boards, plastics, aluminum, cabinets, wood and nested base panels. Available in either single or dual spindles with optional rotary axis. Available Table Sizes: 5'x'5, 5'x10', 5'x12', 6'x12' and 7'x12' 12 HP HSD Spindle (3,000-24,000 RPM). Optional 18 HP Spindle 4 Position Bar Style Automatic Tool Changer. Optional 7 Position Optional Rotary Axis (accepts stock from 8" (200mm) in diameter and up to 56" (1.4m) in length) Fixed Steel High Flow Table with Moving Gantry Multi-Function Table (pod system capable) (Optional) At the Head Automatic Tool Changer (Optional) Extended Z Clearance and Stroke (Optional) Automatic Tool Length Sensor (Optional) Three-Dimensional Laser Compensated Axis Alignment Control Nesting Siemens Intelligent Servo Drives Throughout Thermwood SuperControl Machine Training and Installation

VIDEO
