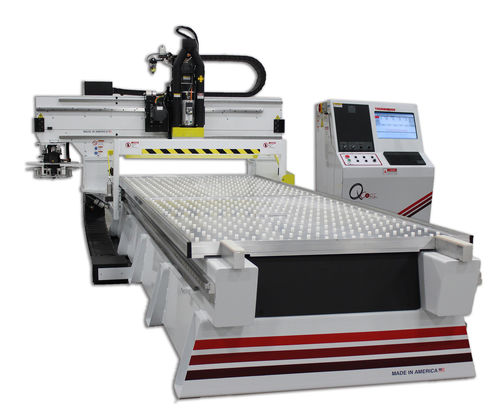

CNC router MULTIPURPOSE 53

3-axismulti-spindlewood

Moving gantry, fixed table, three-axis CNC router designed for the routing and stack machining of large sheet materials such as hardwoods, softwoods, fiberboard (MDF), particleboard, plastics and aluminum. Available Table Sizes: 5'x10' (1.5m x 3.0m), 5'x12' (1.5mx3.6m), 5'x16' (1.5mx4.8m), 5'x20' (1.5mx6.0m) 12 HP HSD Spindle (3,000-24,000 RPM). Optional 18 HP HSD Spindle (3,000-24,000 RPM) available Fixed Solid Aluminum Table with Moving Gantry) Roller Hold Down System (Optional) Automatic Load/Unload System (Optional) Automatic Lubrication (Optional) Automatic Tool Length Measurement (Optional) Three-Dimensional Laser Compensated Axis Alignment Control Nesting Siemens Intelligent Servo Drives Throughout Thermwood SuperControl Machine Training and Installation Free Phone and Forum Support 12 HP (9kw) Spindle A direct driven spindle with a speed range up to 24,000 RPM. The high-frequency spindle is cooled with an electric fan for quieter running and contains ceramic bearings for longer life and for less maintenance. The 12 HP (9kw) spindle provides the user with a heavy duty, precision spindle which provides high performance and reliability. Control Nesting A user-friendly nesting package integrated into the Thermwood control to nest various parts into sheet stock, thus creating a better yield. Also accepts layered DXF files.
