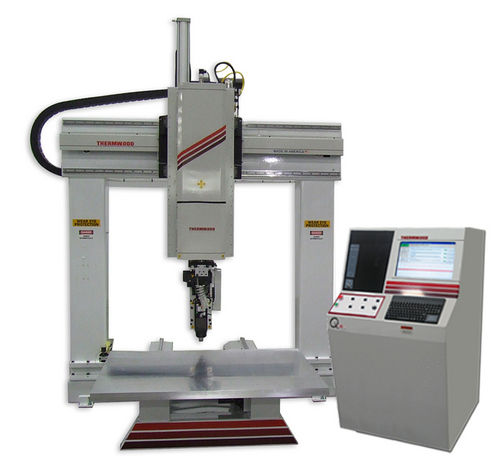

CNC router MULTIPURPOSE 67

5-axiswood

Versatile five axis available with either single or dual moving aluminum tables. Available Table Sizes: Single Table - 5'x'5, 5'x10', 10'x5', 5'x12', and 7'x10' Dual Tables - 5'x5', 5'x10' and 5'x12' 7.5 HP Dual End High Frequency Router (3,000-18,000 RPM). (Standard) 10 HP Dual End Heavy Duty Router (3,000-18,000 RPM) (Optional) 12 HP 24,000 RPM Router with a 6 Position Bar Style Automatic Tool Changing System (Optional) 16 HP 24,000 RPM Router with a 6 Position Bar Style Automatic Tool Changing System (Optional) 1/2" Thick Gridded Aluminum Vacuum Table (Optional) 1/2" Thick Multi-Function Vacuum Table (Optional) Extended Z Axis: 36" vertical (Optional) Extended Z Axis: 48" vertical (Optional) Six Position Tool Bar (Optional) Automatic Tool Length Measurement (Optional) Automatic Tool Length Sensor (Optional) Automatic Lubrication System (Optional) Personal Pause Fob (Optional) Gantry Lighting System (Optional) Accu-Lube Mist Coolant System (Optional) Machine Enclosure (Optional) Impact Resistant Five Axis Head (Optional) Continuous C Axis (Optional) Three-Dimensional Laser Compensated Axis Alignment Siemens Intelligent Servo Drives Throughout QCore SuperControl Machine Training and Installation 7.5 HP Dual End High Frequency Spindle Variable speed, programmable between 3,000 to 18,000 RPM. Maximum collet size is 5/8". Allows continuous axis 5 rotation. Volumetric Laser Compensated Axis Alignment The machine is calibrated in all axes using a three-dimensional volumetric laser interferometer. This type of calibration is the most sophisticated and most accurate available today resulting in machines that are extremely accurate.
