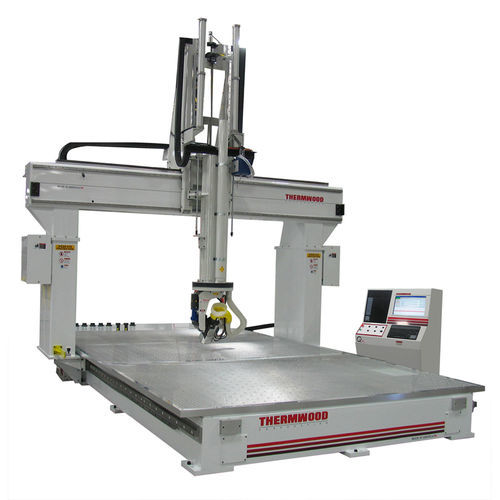

CNC router MULTIPURPOSE 70

5-axismulti-spindlefor composites

Designed for aerospace and composite applications utilizing large/heavy fixtures. Available Table Sizes: 10'x5', 10'x10', 10'x15', 10'X20' 12 HP 24,000 RPM Router with a 4 Position Automatic Tool Changing System (Standard) 16 HP 24,000 RPM Router with a 4 Position Bar Style Automatic Tool Changing System (Optional) 1 1/2" Thick Solid Aluminum Table (Standard) Extended Z Axis: 36" vertical (Optional) Extended Z Axis: 48" vertical (Optional) Extended Z Axis: 60" vertical (Optional) 5 Axis Chip Collection Hood (Optional) Four Position Automatic Tool Changer - In Right Side Gantry Leg (Standard) Ten Position Rotary Automatic Tool Changer (Optional) Twelve Position Tool Bar (mounted to back of table) (Optional) Automatic Tool Length Measurement (Optional) Automatic Lubrication System (Standard) Gantry Lighting System (Optional) Accu-Lube Mist Coolant System (Optional) Machine Enclosure (Optional) Impact Resistant Five Axis Head (Standard) Continuous C Axis (Optional) Three-Dimensional Laser Compensated Axis Alignment Siemens Intelligent Servo Drives Throughout QCore SuperControl Machine Training and Installation 12 HP 24,000 RPM Router w/4 Position Bar Style Automatic Tool Changing System One (1) 12HP, 24,000 RPM variable speed router equipped with a four (4) position Automatic Tool Changing System. Includes four (4) ISO-30 tapered tool holders with four (4) collets, and preset tooling changing fixture. 3 positions will accept tooling up to 11.5 inch in overall length. Standard maximum tool size is 2” diameter.
