5-axis bridge saw TC725
for stonefor marblefor granite

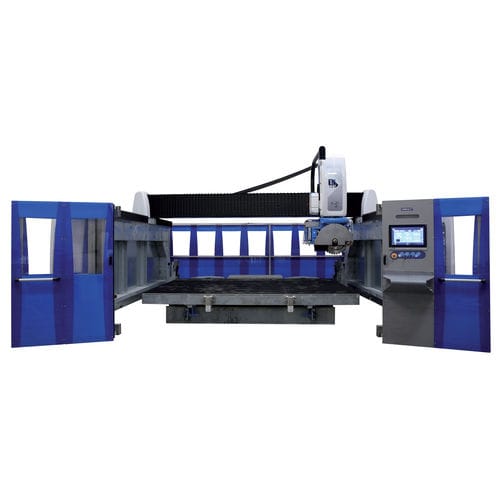

5-axis bridge saw - TC725 - THIBAUT - for stone / for marble / for granite
5-axis bridge saw - TC725 - THIBAUT - for stone / for marble / for granite
5-axis bridge saw - TC725 - THIBAUT - for stone / for marble / for granite - image - 2
5-axis bridge saw - TC725 - THIBAUT - for stone / for marble / for granite - image - 3
5-axis bridge saw - TC725 - THIBAUT - for stone / for marble / for granite - image - 4
5-axis bridge saw - TC725 - THIBAUT - for stone / for marble / for granite - image - 5
5-axis bridge saw - TC725 - THIBAUT - for stone / for marble / for granite - image - 6
Add to favorites
Compare this product


Characteristics

Type
5-axis
Treated material
for stone, for marble, for granite
X travel

3,700 mm
(145.67 in)

Y travel

3,700 mm
(145.67 in)

Z travel

700 mm
(28 in)

Circular saw blade diameter

Min.: 350 mm
(14 in)

Max.: 750 mm
(30 in)

Description

The TC725 is a true 5-axis numerically controlled sawing and shaping centre. The TC725 can automatically cut in all directions up to 250 mm thick or profile workpieces of all shapes. The 360° rotation of the head does not require a rotary table, which makes it a very compact machine. Powerful, the TC725 has a spindle up to 19.9 kW (S6). Its variable speed from 0 to 6000 rpm and its various options give it a very high degree of autonomy and allow it to carry out all types of operations such as drilling, profiling, trimming, sawing, mitre cutting, and brushing, etc.
