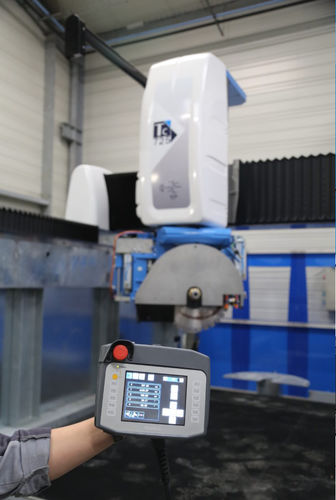

5-axis bridge saw TC725 TOPSfor stone
Add to favorites
Compare this product
Characteristics
- Type
- 5-axis
- Treated material
- for stone
- X travel
3,880 mm
(152.76 in)- Y travel
2,600 mm
(102.36 in)- Z travel
700 mm
(28 in)- Circular saw blade diameter
Max.: 750 mm
(30 in)Min.: 350 mm
(14 in)
Description
The TC725 is a true 5-axis numerically controlled sawing and shaping centre. The TC725 can automatically cut in all directions up to 250 mm thick or profile workpieces of all shapes. The 360° rotation of the head does not require a rotary table, which makes it a very compact machine.
Powerful, the TC725 has a spindle up to 19.9 kW (S6). Its variable speed from 0 to 6000 rpm and its various options give it a very high degree of autonomy and allow it to carry out all types of operations such as drilling, profiling, trimming, sawing, mitre cutting, and brushing, etc.
This is the TOPS version with Y 2600 mm with 2000 mm wide conveyor belt, right to left.
