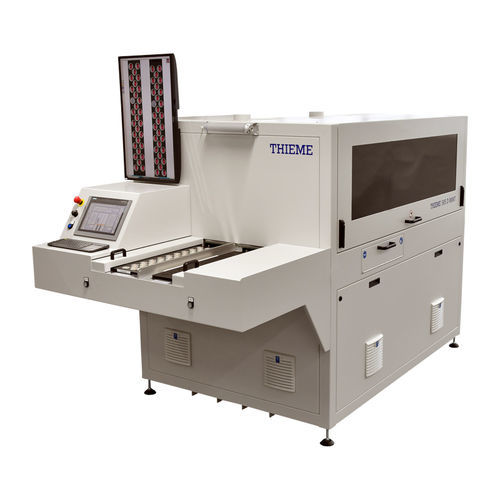

Inkjet printing machine 505 D MINT

for coins7-colorautomatic

Digital inkjet printer with automatic image alignment for the printing of metal coins. Features • Two substrate (coin) reception plates: 2 x approx. 675 x 170 mm • Ink: UV-ink • Colours: 7, CMYK + white + primer + varnish • Drying: 2 x UV-HG • Resolution: 800 x 1500 dpi, 800 x 1800 dpi, 800 x 2100 dpi, 1600 x 1500 dpi  - possible depending on the image • Printheads: 10 x Ricoh Gen5 • HMI: Siemens S7, Touchpanel • Rip: Caldera Grand Rip • Safety features due to fluorescent top coat Why THIEME printing system for printing on precious metals? • Digital Image Alignment - high precision automatic alignment of the printed image to the position of the coins incl. compensation of individual coin rotation • High quality printing (4 C and white) • Excellent adhesion with digital inline primer coating • High resistant against abrasion with digital inline varnish coating • Cycle time approx. 180s per substrate reception plate • Printing speed: up to 1600 coins/hour • Ink cost per coin under 1 euro cent (reference coin ø32 mm) • Double table (substrate carrier) design: Allows loading/unloading of carrier while second carrier is printed • Changeable reception plates allow the printing of different coins and bars
