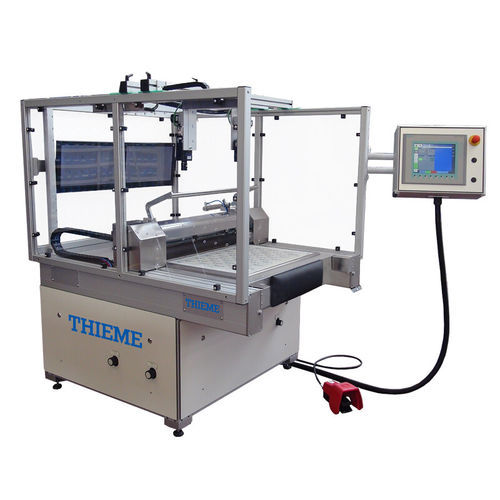

Plastic film laminating machine

Thieme foil laminator for the lamination of flexible circuits. • Flexible sensors • Electrical circuits Why THIEME Foil Laminator?   • Camera supported alignment of printed substrate • Controlled lamination pressure • Configuration to customer demand like heated base plate and lamination roller • Also suitable for laminating sheets • Thieme quality „Made in Germany“ Specifics  • Visual alignment support of the printed substrate with camera, monitor and color change • Table plate as adapter plate for holding the substrate during the lamination process • Gripper to hold the top foil during lamination • Blow air support from below to alow an easy removal of the laminated part • The Thieme laminator will laminate special glue coated lamination foils to a printed film substrate by using a lamination roller with controlled force. The bottom film will be hold in position with vacuum. A pneumatic gripper will hold the top foil in position • Control via foot switch with front side safety light barrier • Siemens PLC with touch control panel on the swivel arm Options: • Switchable vacuum areas • Individual register pins for substrate alignment • Heated lamination roller and vacuum plate
