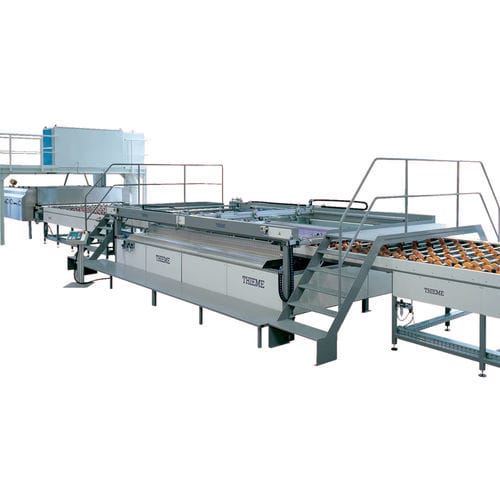

Automatic screen printing machine 3000 GS LS/LM

fully-automaticcolorfor the glass industry

3/4- automatic or fully-automatic flatbed screen printing machine to print on glass and other rigid large-size materials. • It is the perfect machine design for architectural glass • Due to the large formats the disc transport takes place in longitudinal direction • Middle or side positioning • Repeatable positioning of the glass sheets against fixed stops • Reproducible, programmable print parameters Specifics  • Modern PLC control allows flexible operation in semi-, ¾- and full automatic mode • Wear-resistant printing table with blow air support for easy alignment of the glass • With patented THIEME print head with automatic squeegee pressure alignment • Movable print head to the rear either partial or over full format size to ensure good accessibility to the printing table for manual loading, positioning and print inspection • Screen cleaning position 450 mm above the printing table (Optional up to 1000 mm possible) tanschläge Reproducible, programmable print parameters
