Pressure monitoring system

gaswaterair

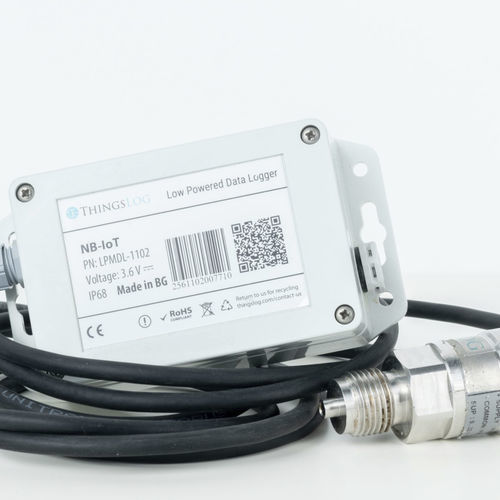

ThingsLog Remote Pressure Monitoring is a solution that aims to provide low-power pressure monitoring of water, non-aggressive or aggressive fluids, air, or gas in locations with difficult access. It’s based on ThingsLog low-power data loggers and specially designed pressure sensors suitable for low-power monitoring. The Remote Pressure Monitoring data loggers come preconfigured and ready to use. Remote Level Monitoring system application - Pressure monitoring in water pipe distribution networks - Air pressure monitoring - Gas pressure monitoring - Pressure monitoring in the food processing industry - Chemical industry Remote Remote Pressure Monitoring features - Network type: NB-IoT, LoRaWAN, 4/5G, GSM, CatM1 - Environment: air, water, non-aggressive liquids, and aggressive fluids - Pressure ranges: from 10 kPa up to 35 absolute bar pressure up to 1000 bar relative pressure - Power supply options: Batteries/Solar/24V - Reverse-polarity protection: YES - Pressure instant alarms – low or high level - Working temperature: -20 ÷ 100°C - Max. allowable pressure: 1.5 x FSO - Process connection: ¼ NPT; G1/4″BSP M; G3/8″ BSP M; G1/2’BSP M; M20×1.5; G1″; G1¼” - Accuracy: 0.5% for 100% of FSO - Electrical connection: LIVY or UNITRONIC ROBUST cable - Electrical connection: ventilated cable - Probe material: stainless-steel 304/316L - Built-in stainless-steel membrane 316 SS - Protection class: IP 65/IP 68 ThingsLog platform and the mobile app support six languages – English, German, Spanish, Russian, Greek, and Bulgarian.
