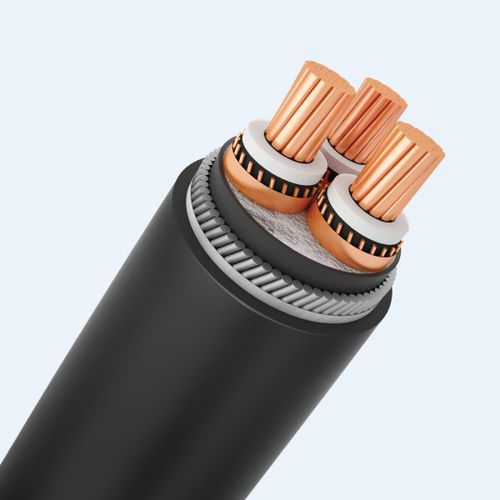

Power cable CXV/SEhh/SWAinsulatedarmoredwith copper screen
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- insulated, armored, with copper screen
- Configuration
- circular
- Core material
- copper
- Number of wire
- 3 wires
- Material of the insulation
- PVC-sheathed, XLPE-insulated
- Norms
- IEC
- Nominal voltage
12 kV, 20 kV, 22 kV, 24 kV, 12,700 kV
- Temperature
90 °C
(194 °F)- Cross-section
Max.: 300 mm²
(0.47 in²)Min.: 35 mm²
(0.05 in²)
Description
Power cable, three-cores, copper conductor, metallic screen consist of wire and copper tape, armoured ( steel wires), sheathed
Standards: IEC 60502-2, TCVN 5935
Construction: Cu/XLPE/PVC/SWA/PVC
Conductor: Annealed plain copper (class 2, compacted circular)
Conductor screen: Semi-conductive compound
Insulation: XLPE
Insulation screen: Semi-conductive compound
Metallic screen: Copper wire and copper tape
Filler, binder: PP, PET
Separation sheath: PVC
Metallic armour: Galvanized steel wires
Binding tape: PET
Outer sheath: PVC (type ST2)
Cable identification: with color tapes lie between insulation screen and metallic screen
Cores: Red, yellow, blue
Outer sheath: Black
The above identifying can be changed as order
