Pressure test bench BO30-2CV/750

durabilityleakPLC-controlled

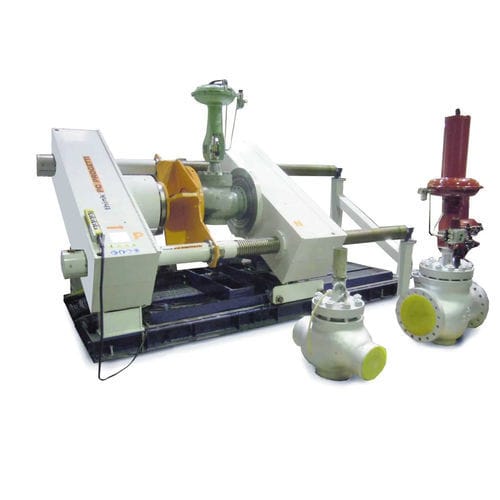

Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. Designed to test control valves up to 32″ according to FCI 70-2 and DIN EN 12266 standards. The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body an hydraulic cylinder makes press clamping with or without proportional control. This prerogative makes it compliant to the most widespread international test standards. A water vessel is installed in the basement as water reservoir for test procedures. The rig is controlled by SKA-100 pressurization skid with control valve asset devices. REACTION FORCE : 750 TON (10% minimum press clamping) (See working limits table) VALVE LENGHT MAX : 2200mm VALVE LENGHT MIN : 0mm COLUMNS INNER CLEARANCE : 1500mm FLOW AXES HEIGHT : 1350mm from soil BASEMENT WATER TANK : 950 Liters LIFTERS : 2x10 TON TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 3 – Combined DIMENSIONS : 4630(L) x 2300 (P) x 2170(H)
