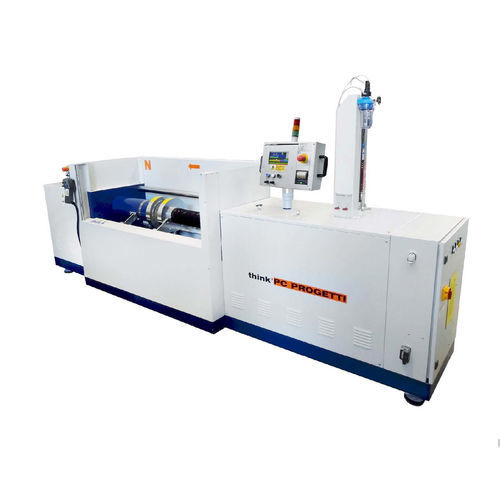

Pressure test bench BO30-2CV/40P

durabilityleakPLC-controlled

Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved by one screwed column that assures complete absence of external forces on valve body an hydraulic cylinder can make press clamping with or without proportional control. This prerogative makes it compliant to the most widespread international test standards. A water vessel is installed in the basement as water reservoir for test procedures. Test process is controlled by electronic PLC & LCD touch screen. Test data can be printed out on 24 cln thermal printer directly in the testing area or it can be downloaded with serial connection (standard) to Windows based PC with TesREC certification software. Operator safety is granted by a front protection with automatic opening. REACTION FORCE : 40 TON (10% minimum press clamping) (see working limits table) VALVE LENGHT MAX : 650mm VALVE LENGHT MIN : 50mm COLUMN INNER CLEARANCE : 460mm FLOW AXES HEIGHT : 830mm BASEMENT WATER VESSEL : 100Liters CLAMPING STYLE : Type 3 - combined clamping CLAMPING FORCE CONTROL : On/off & Proportional(option) FILLING FLOW : 50Liters/min VACUUM PUMP : 36m2/h(Option) STANDARD FLOW METER : See table MAX PRESSURE : 700 -1380 – 2000 – 4000 bar (water) 450 – 700 bar (gas) PNEUMATIC SUPPLY : 6.5 bar @ 1100 Nl/min ELECTRIC SUPPLY : 3PH + T, 400V@50Hz, 5KW(other on request) DIMENSIONS : 2810(L) x 600(P) x 1670(H)
