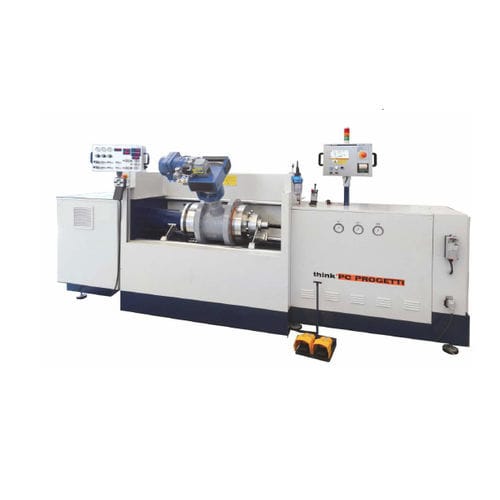

Pressure test bench BO30-2CV/50P

durabilityleakPLC-controlled

Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved by one screwed columns that assures complete absence of external forces on valve body and an hydraulic cylinder can make press clamping with or without proportional control. This prerogative makes it compliant to the most widespread international test standards. A spacer of 600 mm is placed on the fixed bridge side to accomodate large actuators. A water vessel is installed in the basement as water reservoir for test procedures. Test process is controlled by electronic PLC & LCD touch screen. Test data can be printed out on 24cln thermal printer directly in the testing area or it can be downloaded with serial connection (standard) to Windows based PC with TestREC certification software. REACTION FORCE : 50 TON(10% minimum press clamping) (see working limits table) VALVE LENGHT MAX : 620 mm VALVE LENGHT MIN : 0 mm COLUMNS INNER DISTANCE : 590 mm FLOW AXES HEIGHT : 885 mm BASEMENT WATER VESSEL : 100 Liters TERMINATION ALLOWED : RF, RTJ, BW, SW CLAMPING STYLE : Type 3 - combined clamping CLAMPING FORCE CONTROL : On/off & proportional (option) REFERENCE STANDARDS : ISO, DIN, API, ANSI, ASTM, FCI, BS (Other on request). FILLING FLOW : 50 Liter/min VACUUM PUMP : 36m /h (Option) VACUUM PUMPSTANDARD FLOW METER : See table (other flowmeter asset on request) MAX PRESSURE : 700 bar (water) - 6 bar (AIR) DIMENSIONS (MECH) : 3670(L) x 600(P) x 1700(H)
