Pressure test bench BO45-2V/850

durabilityresistanceleak

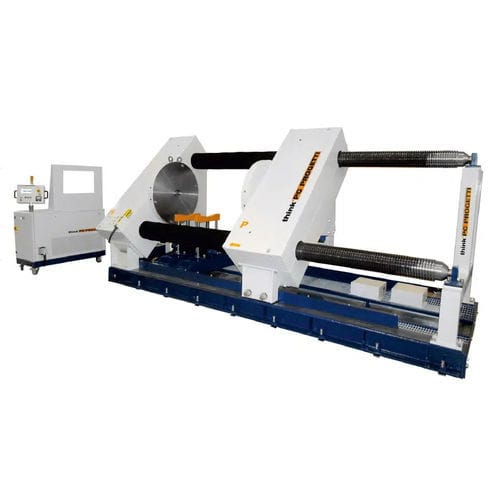

Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards. The 45° columns disposal allows vertical loading of valves to be tested with a crane or with a horizontal loading fork lifter. Besides, the vertical loading height is reduced. In the basement a water vessel is installed as water reservoir for test procedures. The rig is controlled by a SKM or SKA class pressurization skid REACTION FORCE (SEE WORKING LIMITS TABLE) : 580TON (See working limits table) VALVE LENGTH MAX : 3000mm VALVE LENGTH MIN : 200mm COLUMNS INNER CLEARANCE : 1300mm FLOW AXES HEIGHT : 900mm BASEMENT WATER VESSEL : 1100Liters LIFTER : See Option SCREW DUST PROTECTION : See Option TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 2 - Inner radial REFERENCE STANDARD : ISO, DIN, API, ANSI, ASTM, FCI, BS(Other on request) ELECTRIC SUPPLY : 3PH + T, 380V@50Hz, 7,5KW DIMENSIONS (MECH) : 4700(L) x 2340(P) x 2300(H) mm
