Pressure test bench BOT-2CSC/1200
leakautomaticPLC-controlled

Pressure test bench - BOT-2CSC/1200 - Think PC PROGETTI - leak / automatic / PLC-controlled
Pressure test bench - BOT-2CSC/1200 - Think PC PROGETTI - leak / automatic / PLC-controlled
Pressure test bench - BOT-2CSC/1200 - Think PC PROGETTI - leak / automatic / PLC-controlled - image - 2
Add to favorites
Compare this product


Characteristics

Test type
pressure, leak
Operating mode
automatic, PLC-controlled, PC-controllable
Test material
for pipe
Sector
industrial
Technology
hydraulic, pneumatic, electro-hydraulic
Configuration
horizontal
Other characteristics
double-column

Description

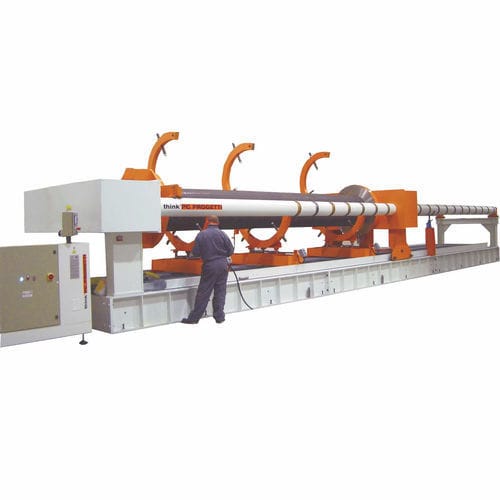

DOUBLE SECTORIZED COLUMNS AND PROPORTIONAL PRESS CLAMPING Test rigs for pipes with clamping style Nr. 1 “Proportional press”. Reaction bridges are connected by sector columns, that allow to set up maximum pipe length. The fine adjustment on pipes is performed by the pressing cylinder stroke. The right side reaction bridge is able to run on the entire columns length to cover a wide range of pipe length measures, as described in the technical table below. Pipe loading is performed by a crane from the top, while Nr. 4 hydraulic “Lunette” lifters will support it for the entire test and they are able to center the alignment on seals heads, and “keep” it to avoid its bending during tests. The basement includes a water vessel with an evaporation limit device. The test bench does not need any foundations and is controlled by a SKA class pressurization skid with up to 1000 L/min water filling ability. REACTION POWER : 1200 TON CLAMPING STYLE : Type 1: Proportional pressing MAX PIPE LENGTH : 12500 mm MIN PIPE LENGTH : 2000 mm MAX PIPE DIAMETER : 1250 mm ALLOWED ELLIPTICAL ERROR : 0,5% FLOW AXES HEIGHT : 1770 mm BASEMENT WATER VESSEL : 14000 Liters MAX TEST PRESSURE : 700 / 1050 bar FILLING FLOW : 1000 Liters/min PRE-FILLING VACUUM : 160 m /h PNEUMATIC SUPPLY : 6.5 bar @ 1500 Nl/min Dry air not lubricated DIMENSIONS : 15000(L) x 2720(P) x 2650(H)
