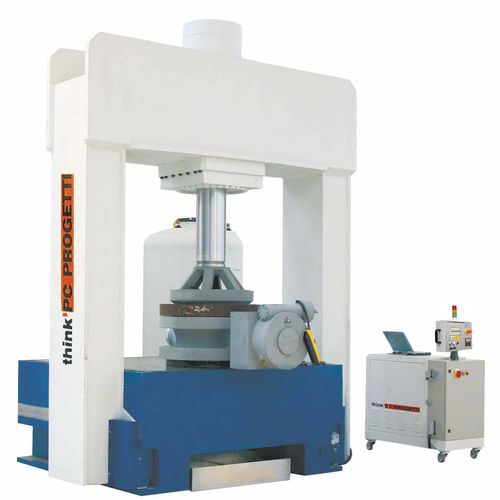

Pressure test bench BV-PMC/550

leakautomaticPLC-controlled

MOBILE BRIDGE PROPORTIONAL PRESS CLAMPING Vertical test rig with controlled pressing clamp; the press force is controlled automatically according to the water pressure inside valves, and the result load is reduced to minimal terms. The mobile upper side bridge allows vertical loading of valves and the possibility to have double working stand; while the first is working, the second could be prepared for other valves. In the basement there is a water vessel and an external water vessel could be added as an option. The use of a open castle as upper side reaction structure allows the user to make visual inspections of valve seats during the test. The rig is controlled by SKA-100 pressurization skid REACTION FORCE (SEE WORKING LIMITS TABLE) : 550TON (10% minimum press clamping) (See working limits table) WORKING STANDS : 1(2 on request) LENGTH MAX : 1500mm LENGTH MIN : 700mm COLUMN INNER CLEARANCE : 2200mm LOADING HEIGHT : 1000mm BRIDGE STROKE : 1250mm BASEMENT WATER VESSEL : 220 Liters (only for spilled water) TERMINATIONS ALLOWED : RF, RJ CLAMPING STYLE : Type 1 - Proportional press clamping CLAMPING FORCE CONTROL : Automatic within 10..100% interval, proportional to hydrostatic pressure inside the valve under test. Regulation can be controlled by the operator DIMENSIONS : 3020(L) x 2200(P) x 4200(H)
