Pressure test bench BV-PMC/200SP

leakautomaticPLC-controlled

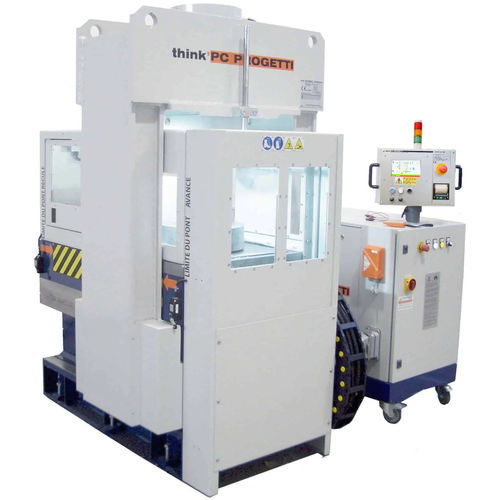

MOBILE BRIDGE PROPORTIONAL PRESS CLAMPING WITH AUTOMATIC VALVE MARKING MICRO-PERCUSSION Vertical test rig with controlled pressing clamp; press force is automatically controlled according to the water pressure inside valves, and the result load is reduced to minimal terms. The mobile upper side bridge allows vertical loading of valves and the possibility to have double working stands; while the first is working, the second could be prepared for the next valves. In the basement there is a water vessel and an external water vessel could be added as option. The use of an open castle as an upper side reaction structure allows the user to make visual inspections of valve seats during the test. The rig has an armored steel protection on sides. The front side can be closed by a mobile horizontal sliding gate (optional). A marketing machine is connected directly to control PLC to mark serial numbers on tested pieces. The rig is controlled by a SKA-100 pressurization skid REACTION FORCE : 200 TON (10% minimum press clamping) (See working limits table) VALVE LENGTH MAX : 450 mm VALVE LENGTH MIN : 50mm COLUMNS INNER CLEARANCE : 650mm LOADING HEIGHT : 900mm BRIDGE STROKE : 600mm BASEMENT WATER VESSEL : 100 Liters TERMINATION ALLOWED : RF, RTJ CLAMPING STYLE : Type: 1 - Proportional press clamping CLAMPING FORCE CONTROL : Automatic within 5%-100% interval, proportional to hydrostatic pressure inside the valve under test. PROTECTION AGAINST WATER JET : armored steel 3 side + mobile front door DIMENSIONS (MECH) : 1100(L) x 1325 (P) x 2020 (H)
