Pressure test bench BV-PMC/350

durabilityleakautomatic

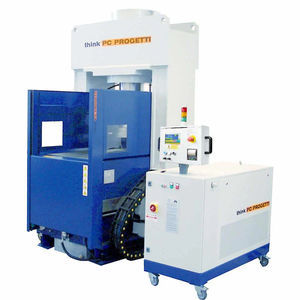

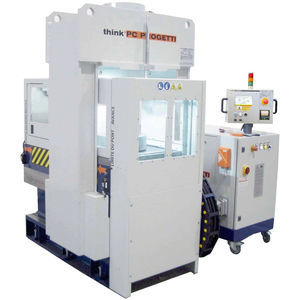

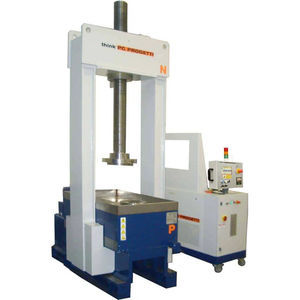

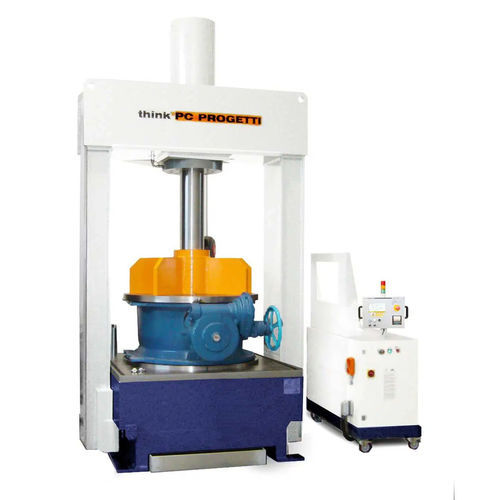

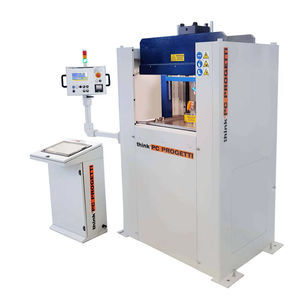

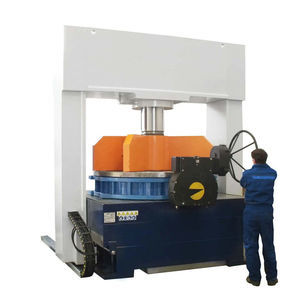

MOBILE BRIDGE PROPORTIONAL PRESS CLAMPING Vertical test rig with controlled pressing clamp; the press force is controlled automatically according to the water pressure inside valves, and the result load is reduced to minimal terms. The mobile upper side bridge allows vertical loading of valves and the possibility to have double working stand; while the first is working, the second could be prepared for other valves. In the basement there is a water vessel and an external water vessel could be added as an option. The use of a open castle as upper side reaction structure allows the user to make visual inspections of valve seats during the test. The rig is controlled by SKA-100 pressurization skid REACTION FORCE : 350 TON (10% minimum press clamping) (see working limits table) WORKING STANDS : 1 (2 on request) VALVE LENGTH MAX : 1280mm VALVE LENGTH MIN : 180mm COLUMNS INNER CLEARANCE : 1620mm LOADING HEIGHT : 900mm BRIDGE STROKE : 1280mm BASEMENT WATER VESSEL : 200 Liters TERMINATIONS ALLOWED : RF, RJ CLAMPING STYLE : Type 1 - Proportional Press Clamping CLAMPING FORCE CONTROL : Automatic within 5..100% intervalproportional to the hydrostatic pressure inside the valve under test. DIMENSIONS (MECH) : 2140(L) x 1700(P) x 4050(H)
