SINGLE SCREWED COLUMN INNER RADIAL SEAL (BORE PLUGS)

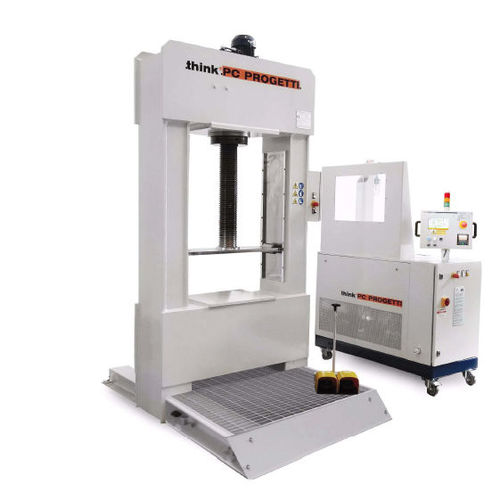

Vertical test rig with inner radial seal clamping style.
The mobile reaction bridge is moved by one screwed column that assures complete absence of external forces on valve body.
This prerogative makes it compliant to the most widespread international test standards.
In the basement a water vessel could be installed as water reservoir for test procedures (see option).
The rig is controlled by a SKM-100 pressurization skid
REACTION FORCE : 200 TON (See working limits table)
VALVE LENGTH MAX : 1000 mm
VALVE LENGTH MIN : 100 mm
COLUMNS INNER CLEARANCE : 900 mm
TERMINATIONS ALLOWED : BW, SW, RF, RJ
CLAMPING STYLE : Type 2 – Inner radial
DIMENSIONS : 1340 (L) x 1790(D) x 3240 (H)
