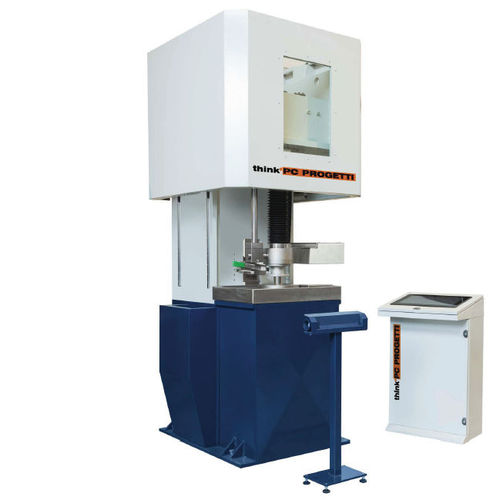

Pressure test bench BV-CCV/20P

leakautomaticPLC-controlled

COMBINED CLAMPING: INNER RADIAL SEAL + PROPORTIONAL PRESSING AND AUTOMATIC VALVE ACTUATOR Fully automatic vertical test rig with controlled pressing clamp; press force is automatically controlled according to the water pressure inside valves, and the result load is reduced to minimal terms. It has a 90° hydraulic actuator that lets the valve move according to a test sequence. The high resolution differential pressure drop leak detection system is used to measure leak rates according to DIN 12266-1 for GAS leakage. A mobile loading plate makes loading operations simple. A mobile vertical protection assures operators safety in case of seal blows. An electronic PLC controls all test operations, and the operator has a LCD touch screen monitor to set-up test sequences. REACTION FORCE : 20 TON (10% minimum press clamping) (see working limits table) VALVE LENGTH MAX : 505mm VALVE LENGTH MIN : 30mm LOADING HEIGHT : 900mm WATER VESSEL : External 220 Liters TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 3 - Combined CLAMPING FORCE CONTROL : Automatic within 10..100% interval, proportional to the hydrostatic pressure inside the valve under test. Reg. gain controlled by the operator. HYDRAULIC TEST : H2O w/oil 5% , 3-40bar(200bar, 650bar, as option) PNEUMATIC TEST : 0,5 - 6 bar PNEUMATIC SUPPLY : 6.5 bar @ 1100 Nl/min - Dry air not lubricated ELECTRIC SUPPLY : 3PH + T, 400V@50Hz, 5KW DIMENSIONS (MECH) : 1550(L) x 1050(D) x 2250(H)
