Pressure test bench BV-CCV/15P
leakPLC-controlledfor valves

pressure test bench
pressure test bench
pressure test bench
pressure test bench
Add to favorites
Compare this product


Characteristics

Test type
pressure, leak
Operating mode
PLC-controlled
Test material
for valves
Sector
industrial
Technology
pneumatic
Configuration
vertical

Description

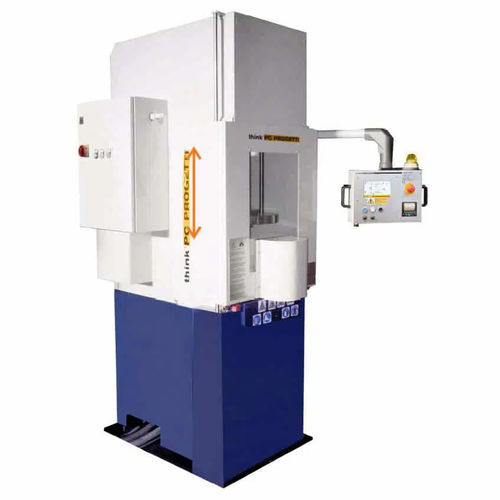

COMBINED CLAMPING INNER RADIAL SEAL + PROPORTIONAL PRESSING Vertical test rig with an automatic test sequence. Combined clamping style: proportional press clamping and inner radial seals. A protection against water jets surrounds the valve under test and it is automatically controlled with pneumatic cylinders. A PLC controls test sequences that can be configured by a LCD touch screen. REACTION FORCE : 15 TON (10% minimum press clamping) (See working limits table) VALVE LENGTH MAX : 590 mm VALVE LENGTH MIN : 50mm LOADING HEIGH : 900mm WATER VESSEL : 300 Liters External TERMINATION ALLOWED : BW. SW, RF, RTJ CLAMPING STYLE : Type: 3 – Combined: Proportional pressing & inner radial seal (bore plugs) CLAMPING FORCE CONTROL : Automatic within 10%-100% interval, proportional to hydrostatic pressure inside the valve under test. REFERENCE STANDARDS : ISO, DIN, API, ANSI, ASTM, FCI, BS (Other on request). HYDRAULIC TEST : H2O 700 bar MAX PNEUMATIC TEST : 0.5 bar – 6 bar PNEUMATIC SUPPLYv : 6.5 bar @ 1100 Nl/min - Dry air not lubricated ELECTRIC SUPPLY : 3PH + T, 380V@50Hz, 5KW DIMENSIONS (MECH) : 730 (L) x 1010 (D) x 2340 (H) mm
