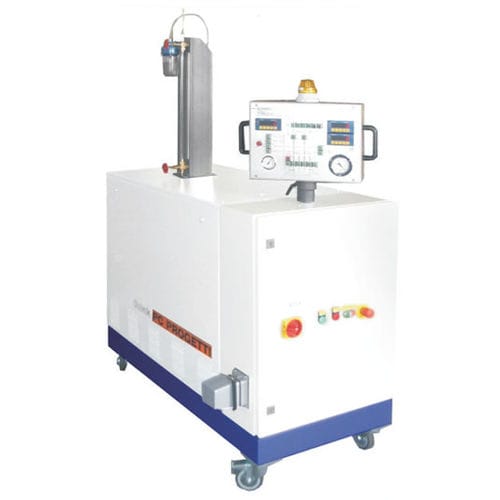

Semi-automatic pressurization skid SKM-100

valvefor test benches

Hydraulic/pneumatic Pressurization skid.Semi-automatic control with command on control console. Each process element (valves & pump) is controlled by the operator by luminous pushbuttons. Leak could be measured (option) by electronic bubbles counter or precision water column for H2O leak (height measured by pressure transmitter). Vacuum pump could be installed (option) to assure the absence of air inside valve’s body before filling it with water; in order to reduce test time and increase operator’s safety. All wet process components are stainless steel made and dimensioned for a working pressure of 700bar . It has a high filling flow ability and the recovering of test fluid is automatic. Metal to metal needle valves assure high reliability (up to 6897bar as option). The “manual” nature of this skid, allow the operator to perform test on the valve (or test sequences) non contemplated into the reference test standard. H2O : 700 / 1050 / 1380 / 1600 / 2068 / 4138 / 6897 bar N2 : 200 / 450 / 700 / 1380 bar AIR : 200 / 450bar FILLING FLOW : 120L/min PRESSURIZATION POWER : 1,5 / 3HP VACUUM PUMP OPT. : 36 / 80m3/h GAS TEST OPT. : Available GAS BOOSTER OPT. : Available CAVITY TEST OPT : Available MULTISTATION OPT. : Available 2 to 5 stations control ACTUATOR CONTROL PANEL OPT. : Available (option) FLUID ALLOWED : Water, Water & oil mixture, Glicole, Ethanol (Atex), Methanol (Atex).
