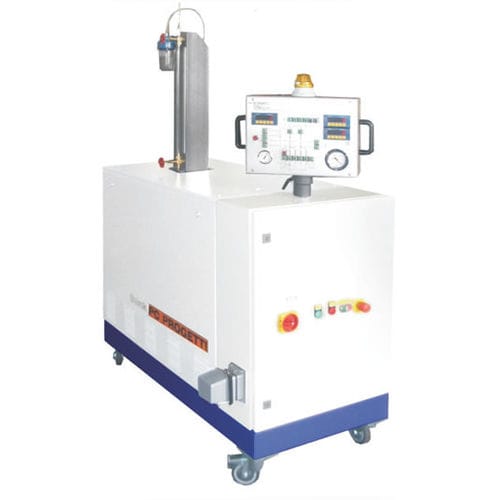

Semi-automatic pressurization skid SKM-250

valvefor test benches

Hydraulic/pneumatic pressurization skid. Controlled by electrical pushbutton on a graphical synoptic panel or manual needle valves (GAS). Every process element is controlled directly by the operator; main safety garrison for wrong maneuvers has been included. This make the SKID very flexible to any testing procedure. Leak could be measured (option) by electronic bubbles counter, high accuracy water column (API) , turbine flow meter and mass flow meter (FCI 70-2). Vacuum pump could be installed (option) to assure the absence of air inside valve’s body before filling it with water; in order to reduce test time and increase operator’s safety. All wet process components are stainless steel made and dimensioned for a working pressure of 700bar (1200/2100/4000bar as option). H2O : 700 / 1050 / 1380 / 1600 / 2068 / 4138 / 6897 bar N2 : 200 / 450 / 700 / 1380 bar AIR : 200 / 450bar FILLING FLOW : 240L/min PRESSURIZATION POWER : 1,5 / 3HP VACUUM PUMP OPT. : 36 / 80m3/h GAS TEST OPT. : Available GAS BOOSTER OPT. : Available CAVITY TEST OPT : Available MULTISTATION OPT. : Not Available ACTUATOR CONTROL PANEL OPT. : Available (option) ATEX CERTIFICATION OPT. : Available FLUID ALLOWED : Water, Water & oil mixture, Glicole, Ethanol (Atex), Methanol (Atex).
