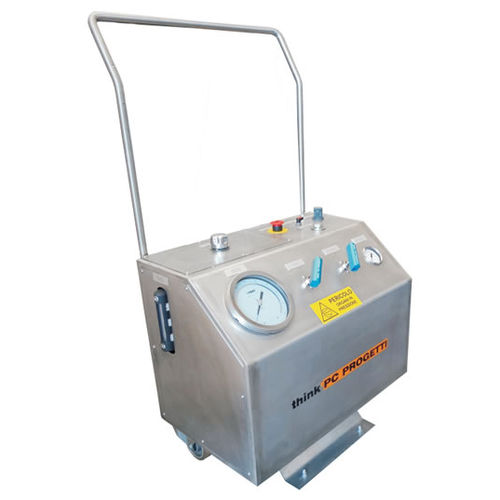

Valve pressurization skid SKMM-10

for test benches

The Model SKMM-10 is a hydraulic/pneumatic pressurization skid. The unit is managed by an electrical push-button on a graphical synoptic panel, or manual needle valves (GAS). The user can control each process component. It has an included central secured garrison for wrong maneuvers. This makes the unit suitable for any testing procedure. With the use of an electronic bubbles counter, high accuracy water column (API), turbine flow meter and mass flow meter (FCI 70-2), leaks can be optionally gauged. In addition, a vacuum pump can be installed to ensure the lack of air inside body of valve, before filling it with water. This is done in order to reduce test time and increase operator's safety. All wet processed materials are stainless steel-made, and manufactured for a working pressure of 700 bar. MAX WORKING PRESSURE H2O : 700 / 1200 / 2100 / 4000 bar N2 : 700 / 1050 bar AIR : 200 / 450 bar FILLING FLOW H2O : 10L/min ( 10L Internal TANK Included) DBB TEST OPT. : Included GAS BOOSTER OPT : Available CAVITY TEST : Available ATEX CERTIFICATION OPT. : Available PROCESS STYLE : Bidirectional HP FLUID ALLOWED : Water, Water & oil mixture. Glicole, Ethanol / Methanol (Atex). CONTROL SYSTEM : Manual needle valve PRESSURE MEASURE : Analog gauge / digital REF. STANDARD : API / DIN / BS / FCI SERIAL INTERFACE : RS-485 MODBUS PROTOCOL CERTIFICATION SOFTWARE : Option TestREC PROCESS CONNECTIONS : BSPP ½ "-F / HP 1/4"-F SERVICE AIR SUPPLY : 7bar @ 2000 L/min Other available on request DIMENSIONS (MECH) : 700(L) x 300(D) x 350(H)
