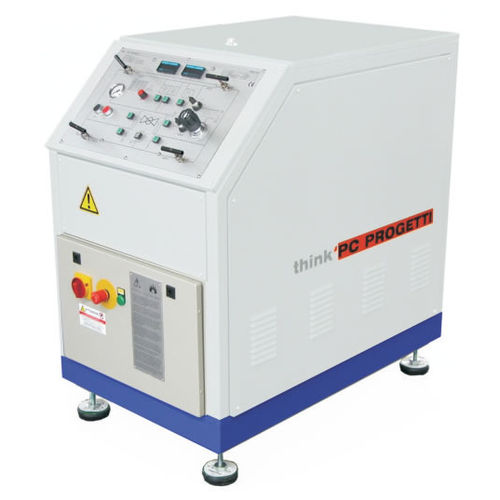

Test bench pressurization skid SKMM-100

valve

Hydraulic/pneumatic pressurization skid. Controlled by electrical pushbutton on a graphical synoptic panel or manual needle valves (GAS). Every process element is controlled directly by the operator; main safety garrison for wrong maneuvers has been included. This make the SKID very flexible to any testing procedure. Leak could be measured (option) by electronic bubbles counter, high accuracy water column (API) , turbine flow meter and mass flow meter (FCI 70-2) . Vacuum pump could be installed (option) to assure the absence of air inside valve’s body before filling it with water; in order to reduce test time and increase operator’s safety. All wet process components are stainless steel made and dimensioned for a working pressure of 700 bar (up to 6897bar as option). It has a high filling flow ability and the recovering of test fluid is automatic. Metal to metal needle valves assure high reliability. A PC windows based for data recording could be included, instrumentation supplied with MODBUS serial interface protocol (TestREC2.0-M). H2O : 700 / 1050 / 1380 / 1600 / 2068 / 4138 / 6897 bar N2 : 200 / 450 / 700 / 1000 bar AIR : 200 / 450bar FILLING FLOW : 120L/min VACUUM PUMP : 36 m3/h(80 m3/h on request) DBB TEST OPT. : Available GAS BOOSTER OPT. : Available CAVITY TEST OPT : Available ATEX CERTIFICATION OPT. : Available PROCESS STYLE : Bidirectional, with or without bypass valve HP FLUID ALLOWED : GAS (N2, He, AIR) CONTROL SYSTEM : Manual valve & Electrical lighted pushbuttons installed on graphical synoptic panel PRESSURE MEASURE : 4-20mA Pressure transmitter+ 7-seg Digital Display REF. STANDARD : API \ DIN \ BS \ FCI SERIAL INTERFACE : RS485 MODBUS PROTOCOL
