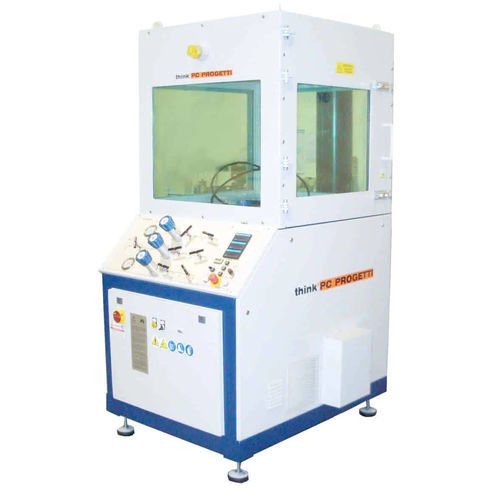

Test bench pressurization skid SKMM-100/GAS/B4

valve

Controlled by electrical pushbutton on a graphicalsynoptic panel or manual needle valves (GAS). Everyprocess element is controlled directly by the operator;main safety garrison for wrong maneuvers has beenincluded. This make the SKID very flexible to any testing procedure. Leak could be measured (option) byelectronic bubbles counter, high accuracy water column(API) , turbine flow meter and mass flow meter(FCI 70-2) . Vacuum pump could be installed (option)to assure the absence of air inside valve’s bodybefore filling it with water; in order to reduce test timeand increase operator’s safety. All wet processcomponents are stainless steel made anddimensioned for a working pressure of 700bar. It has a high filling flow ability and the recoveringof test fluid is automatic. Metal to metal needlevalves assure high reliability. A PC windows basedfor data recording could be included,instrumentation supplied with MODBUS serialinterface protocol (TestREC2.0-M). N2 : N2 60 / 200/ 700 bar contemporary AIR : AIR 60 / 200 bar contemporary GAS BOOSTER OPT : Available CAVITY TEST : Available ATEX CERTIFICATION OPT. : Available PROCESS STYLE : Bidirectional HP FLUID ALLOWED : GAS (N2, He) CONTROL SYSTEM : Manual valve & Electrical lighted pushbuttons installed on graphical synoptic panel PRESSURE MEASURE : 4-20mA pressure trasmitter +7-seg Digital Display REF. STANDARD : API / DIN / BS /FCI SERIAL INTERFACE : RS-485 MODBUS PROTOCOL CERTIFICATION SOFTWARE : Option TestREC AIR / GAS : ANSI Bubbler, Bubbles counter, Volumetric bubbler. PROCESS CONNECTIONS : NPT 1/2"-F / HP 1/4"-F / HP 3/8"-F DIMENSIONS : 1000 (L) x 1280 (D) x 2000 (H) Bullet proof class BR6 dim. 900 (L) x 700 (D) x 700 (H)
