Pressure test bench BVI-V/20
leakautomaticmanual

Pressure test bench - BVI-V/20 - Think PC PROGETTI - leak / automatic / manual
Pressure test bench - BVI-V/20 - Think PC PROGETTI - leak / automatic / manual
Pressure test bench - BVI-V/20 - Think PC PROGETTI - leak / automatic / manual - image - 2
Pressure test bench - BVI-V/20 - Think PC PROGETTI - leak / automatic / manual - image - 3
Pressure test bench - BVI-V/20 - Think PC PROGETTI - leak / automatic / manual - image - 4
Pressure test bench - BVI-V/20 - Think PC PROGETTI - leak / automatic / manual - image - 5
Pressure test bench - BVI-V/20 - Think PC PROGETTI - leak / automatic / manual - image - 6
Add to favorites
Compare this product


Characteristics

Test type
pressure, leak
Operating mode
automatic, manual, PC-controllable
Test material
immersion valve
Sector
industrial
Technology
mechanical, hydraulic, pneumatic
Configuration
vertical

Description

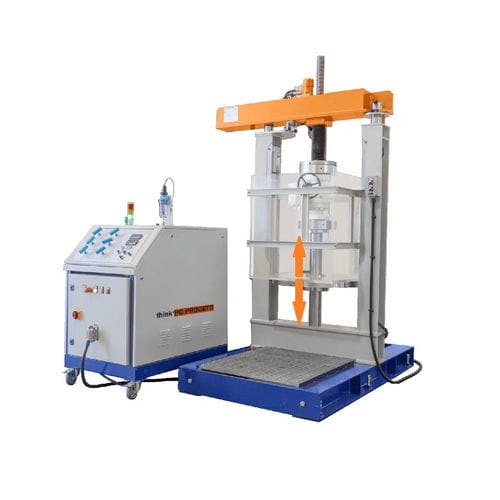

VERTICAL LOADING INNER RADIAL SEALS (BORE PLUGS) Water immersion air test rig. It has been designed to discover bubbles leakages in valves casting. A water vessel is vertically moved in order to save testing time. A clamping system will let the operator place valves directly on testing position. REACTION FORCE : 20 TON VALVE LENGTH MAX : 610mm VALVE LENGTH MIN : 200 mm CLEARANCE BETWEEN COLUMNS : 800 mm WATER IMMERSION VESSEL : 690 (L) x 1200 (D) x 790 (H) mm vertical movement CAMPING STYLE : Type 2: Inner radial seal DIMENSIONS (MECH) : 1150 (L) x 1980 (D) x 2480 (H)
