Pressure test bench BV-M/60

leakautomaticmanual

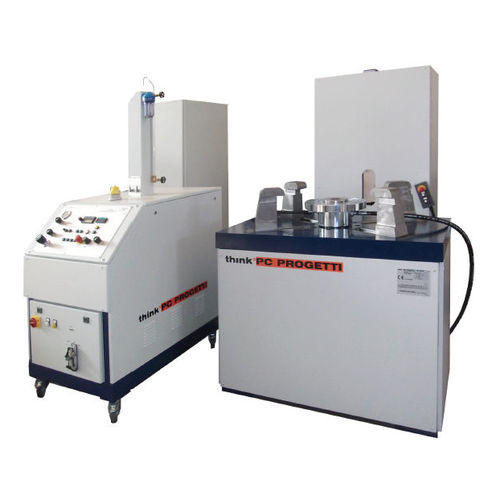

HYDRAULIC AND PNEUMATIC TEST BENCHES FOR PSV VALVES Test rig with claws clamping. Test on RF or RTJ valves could be executed in real working conditions. The clamping is of hydraulic on/off type. This prerogative makes it suitable for PSV valves and for flow valves. The auto-centering movement of claws and tilting is hydraulically or pneumatically controlled (as option). In the basement there is a vessel for test fluid an additional vessels are available. The rig can be controlled by a standard pressurization skid; in the picture you can see mod. SKMM-100-G. REACTION FORCE : 60 TON (See working limits table) FLANGE MAX DIAMETER : 530 / 650 / 860mm FLANGE MIN DIAMETER : 90mm SEAT LIFT MEASURE : 0-100mm CONTACT LESS SENSOR : 0-70 mm ± 0,05 mm FLANGE THICKNESS MAX : 90mm TILTING ANGLE : FIXED (not tiltable) BASEMENT WATER VESSEL : 200 Liters TERMINATIONS ALLOWED : RF, RJ CLAMP TYPE : Hydraulic cylinder w/claws CLAMPING FORCE CONTROL : On/Off type RANGE : 10..100% ELECTRICAL SUPPLY : 3PH + T400V@50Hz, 2KW DIMENSIONS (MECH) : 1250(L) x 700 (D) x 1250(H)
