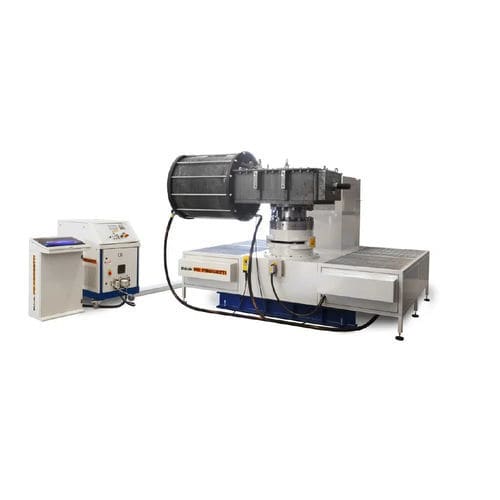

Torque test bench BPA-250K

enduranceperformanceautomatic

STATIC TORQUE PEAK MEASURE AND ENDURANCE DYNAMIC TEST Scotch YOKE ¼ turn actuator test bench, able to perform TORQUE test in static positions and dynamic endurance full load simulation. It is controlled by SKMM-100 pressurization skid and test data are collected by TestREC6.6.0- ACT control software. NOMINAL TORQUE : 250.000 Nm WORKING RANGE : 10 – 100% TORQUE MEASUREMENT : Indirect (loading cell) ANGLE RANGE : 0.0° - 90.0° ZERO ADJUSTMENT : -5.0° / +5.0° BIDIRECTIONAL REACTION FORCE : INCLUDED STATIC TORQUE MEASURING ANGLE RES. : 0,1° STATIC TORQUE FIXED POINT (PIN BLOCK) : Available as option GENERAL ACCURACY : 0.5% F.S. DYNAMIC TEST SIMULATION : Dynamic brake ROTATION SPEED : 0,1 – 2,0 °/sec (Other on request) DIMENSIONS (MECH) : 2700 (L) x 2600 (D) x 1600(H)
