Reclining test bench BOR-M/350

pressureleakautomatic

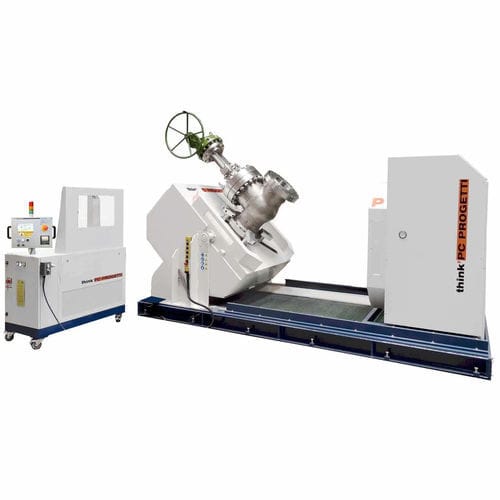

DOUBLE CLAWS CLAMPING WHIT TITABLE BRIDGE Horizontal test rig with double claws clamping and tiltable on a site. The right hand-side is movable to adjust to valves length. Claws clamping can be performed only on flanged valves. It allows testing of mechanical stress on flange neck during test performance. Besides, the clamping force has no influence on valve seat behaviour during test, due to the absence of external forces applied. The rig is controlled by SKA-100 pressurization skid REACTION FORCE (SEE WORKING LIMITS TABLE) : 350 TON (See working limits table) LENGTH MAX : 2200 mm LENGTH MIN : 500 mm FLANGE DIAMETER MAX : 1200 mm FLANGE DIAMETER MIN : 120 mm FLANGE THICKNESS MAX : 150 mm FLANGE THICKNESS MIN : 0 mm FLOW AXES HEIGHT : 1180 mm BASEMENT WATER VESSEL : 1000 Liters ca. TERMINATIONS ALLOWED : RF, RJ CLAMPING STYLE : Type 6 – Double claws clamping DIMENSIONS (MECH) : 4460(L) x 2300(D) x 1930(H)
