Pressure test bench BO30-2CV/250L

durabilityleakmanual

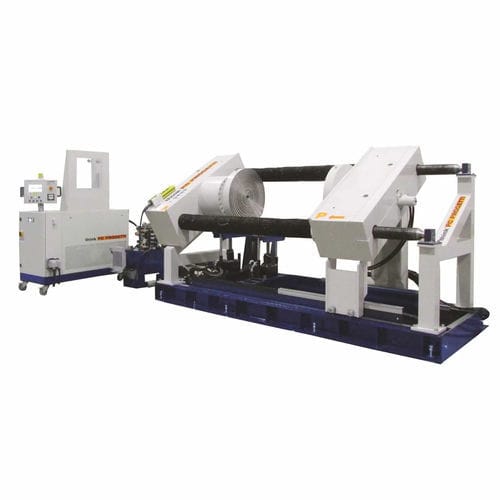

Horizontal test rig with combined clamping style: inner radial seal + press clamping facilities. The mobile reaction bridge is moved by two screwed columns that assure the complete absence of external forces on valve body and an hydraulic cylinder makes pressing clamping with or without proportional control. This prerogative makes it conform to the most diffuse international test standards. In the basement, a water tank is installed as water reservoir for test procedures. Complete flow meters set could be installed (see option) to perform seat leakage test on control valves. The rig is controlled by SKA-100 pressurization skid REACTION FORCE : 250 TON (10% minimum press clamping) (See working limits table) COLUMNS DISPOSAL : 30° VALVE LENGHT MAX : 1600mm VALVE LENGHT MIN : 0 mm COLUMNS INNER CLEARANCE : 1150mm FLOW AXES HEIGHT : 950mm BASEMENT WATER VESSEL : 400 Litres LIFTER : 2x5 TON VALVE KIND : BW, SW, RF, RJ CLAMPING STYLE : Inner radial & Pressing - Combined DIMENSIONS (MECH) : 3375(L) x 1625(P) x 1627(H)
