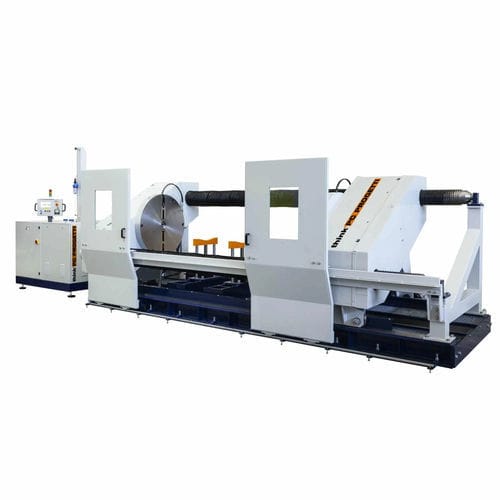

Pressure test bench BO30-2V/850

durabilityleakPLC-controlled

Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards. The rig is controlled by SKA-100 class pressurization skid REACTION FORCE : 850 TON (See working limits table) VALVE LENGHT MAX : 2200 mm VALVE LENGHT MIN : 400 mm COLUMNS INNER CLEARANCE : 1580 mm FLOW AXES HEIGHT : 1230 mm LIFTERS : 2x10 TON BASEMENT WATER TANK : 1600 Liters TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 3 – Combined DIMENSIONS (MECH) : 5140 (L) x 1974 (P) x 1984 (H)
