Pressure test bench BO45-2V/1600

leakdurabilitymanual

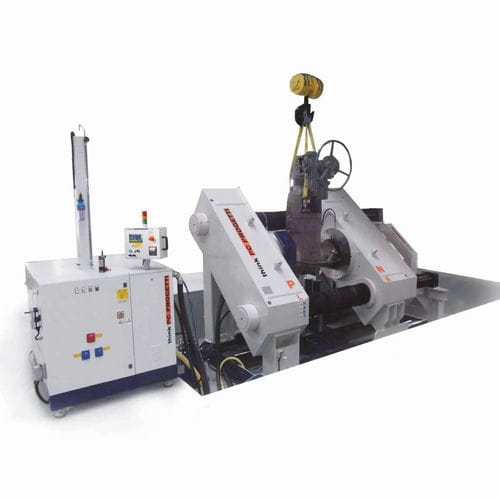

Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards. The rig is controlled by SKA-500 class pressurization skid Reaction bridges can be prepared for articulated camera insertion and for seat inspections during testing. REACTION FORCE : 1600 TON VALVE LENGTH MAX : 2350 mm VALVE LENGTH MIN : 200 mm COLUMNS INNER CLEARANCE : 1600 mm FLOW AXES HEIGHT : 1900mm BASEMENT WATER VESSEL : 1500 Liters LIFTERS : 2x20 TON TERMINATIONS ALLOWED : RF, RJ, BW, SW CLAMPING STYLE : Type 2 – Bore Plugs DIMENSIONS (MECH) : 4790 (L) x 2290 (P) x 3125 (H)
