Vertical test bench BV-PMC/800
pressureleakPLC-controlled

vertical test bench
vertical test bench
Add to favorites
Compare this product


Characteristics

Test type
pressure, leak
Operating mode
PLC-controlled
Test material
valve
Sector
industrial
Technology
mechanical, electromechanical
Configuration
vertical

Description

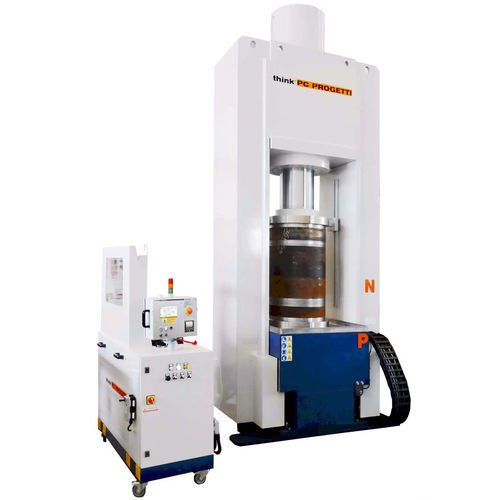

MOBILE BRIDGE PROPORTIONAL PRESS CLAMPING Vertical test rig with controlled pressing clamp; the press force is controlled automatically according to the water pressure inside valves, and the result load is reduced to minimal terms. The mobile upper side bridge allows vertical loading of valves and the possibility to have double working stand; while the first is working, the second could be prepared for other valves. In the basement there is a water vessel and an external water vessel could be added as an option. The use of a open castle as upper side reaction structure allows the user to make visual inspections of valve seats during the test. The rig is controlled by SKA-100 pressurization skid REACTION FORCE : 800 TON (10% minimum press clamping) WORKING STAND : 1 ( 2 on request) LENGTH MAX : 1500 mm LENGTH MIN : 200 mm COLUMNS INNER CLEARANCE : 1040 mm LOADING HEIGHT : 1050 mm BRIDGE STROKE : 800 mm BASEMENT WATER VESSEL : 350 Liters ca. TERMINATIONS ALLOWED : RF, RJ CLAMPING STYLE : Type 1 – Proportional press clamping Automatic within 10..100% interval, proportional to hydrostatic pressure inside the valve under test. Regulation can be controlled by the operator DIMENSIONS : 1800 (L) x 2060 (P) x 4500 (H)
