Pressure test bench BV-PMV/200

leakautomaticPC-controllable

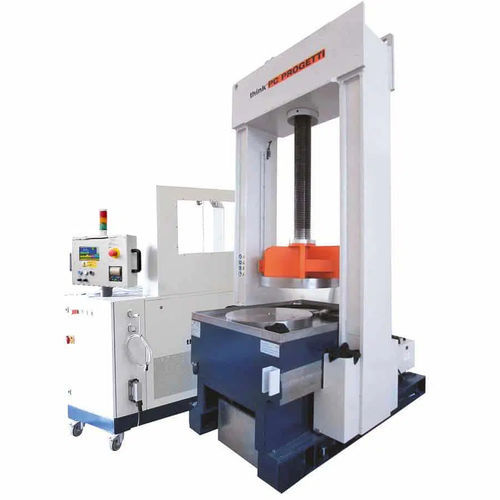

MOBILE BRIDGE, BORE PLUGS CLAMPING Vertical test rig with bore plugs clamping style; mobile upper side bridge allows vertical loading of the valve and the possibility to have double working stand; while the first is working, the second could be prepared for next piece. In the basement there is a water tank and an external water tank could be added as option. The use of a opened castle as upper side reaction structure, allows the user to make visual inspection of valve seat during the test. The rig is controlled by SKA/SKM classes pressurization skid REACTION FORCE : 200 TON WORKIG STAND : 1 ( 2 on request) LENGTH MAX : 1300 mm LENGTH MIN : 200 mm COLUMNS INNER CLEARANCE : 1100 mm LOADING HEIGHT : 1010 mm BRIDGE STROKE : 900 mm BASEMENT WATER VESSEL : 350 Liters ca. TERMINATIONS ALLOWED : RF, RJ, BW, SW (Bore machined) CLAMPING STYLE : Type 2 – Bore Plugs DIMENSIONS (MECH) : 1610 (L) x 2440 (P) x 3450/4150 (H)
