Pressure test bench BV-PMCV/100H

leakautomaticmanual

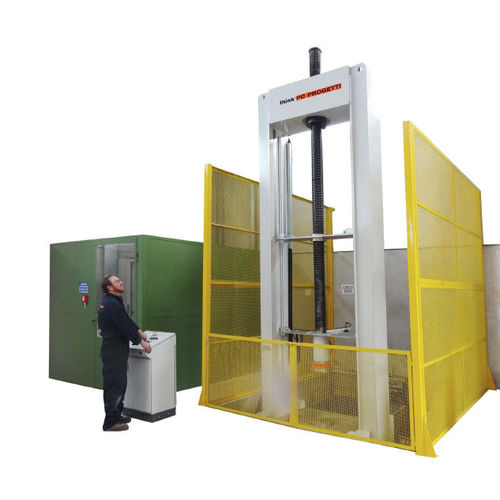

MOBILE BRIDGE COMBINED CLAMPING Vertical test rig with combined clamping style : inner radial seal and proportional press clamping facilities. The upper side screw assures complete absence of external forces on valve body and an hydraulic cylinder can make press clamping with or without proportional control. This prerogative makes it compliant to the most widespread international test standards. An upper side bridge allows vertical loading of valves and the possibility to have double working stands; while the first is working, the second could be prepared for the next valves. In the basement there is a water vessel and an external water vessel could be added as an option. The rig is controlled by SKA class pressurization skid REACTION FORCE : 100 TON (10% minimum press clamping) WORKIG STAND : 1 ( 2 on request) LENGTH MAX : 3500 mm LENGTH MIN : 200 mm COLUMNS INNER CLEARANCE : 1300 mm LOADING HEIGHT : 700 mm BRIDGE STROKE : 900 mm BASEMENT WATER TANK : 250 Liters ca. TERMINATIONS ALLOWED : RF, RJ, BW, SW CLAMPING STYLE : Type 3 – Bore Plugs & proportional press clamping DIMENSIONS : 1740 (L) x 2090 (D) x 5300/8500 (H)
