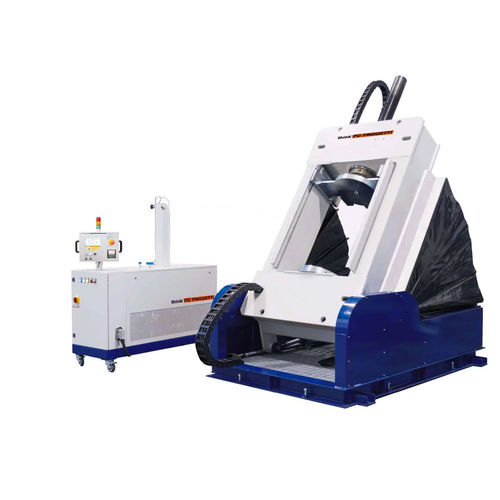

Reclining test bench BOR-1V/200

pressureleakmanual

BORE PLUGS CLAMPING W/90° TILT BILITY Horizontal test rig with bore plug clamping style: inner radial seal facilities. The mobile reaction bridge is moved by one screwed column that assures complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards. Besides, valve flow axes can be tilted by 90° according to test position preferred by the customer. A water vessel in installed in the basement as water reservoir for test procedures. The test process is controlled by SKA-100 pressurization SKID. REACTION FORCE : 200 TON (see working limits table) LENGTH MAX : 1000 mm LENGTH MIN : 100 mm COLUMNS INNER CLEARANCE : 900 mm LOADING HEIGHT : Horizontal 720 mm / Vertical 1020 mm ROTATION ANGLE : 90° BASEMENT WATER VESSEL : 600 Liters TERMINATION ALLOWED : RF, RTJ, BW, SW CLAMPING STYLE : Type 2 – bore plugs DIMENSIONS (MECH) : Horizontal : 1920(L) x 3500(D) x 970(H) mm Vertical : 2500(L) x 2820(D) x 3700(H) mm
