Reclining test bench BOR-M/15

pressureleakmanual

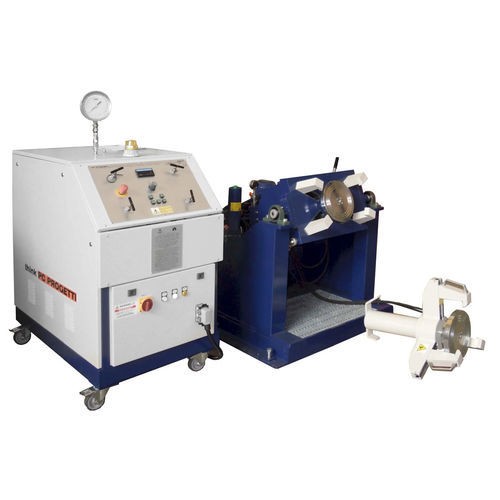

CLAWS CLAMPING + PORTABLE CLAMPING DEVICE Tiltable Single/Double claws clamping with floor fixed claws clamping unit, and an optional portable clamping unit. Claws clamping can be performed only on flanged valves. It allows the testing of mechanical stress on flange neck during test performing. Besides, the clamping force has no influence on valve seat behaviour during test, due to the absence of external forces applied. Even VISUAL test on valve seat during test is facilitated. The rig is controlled by SKA-100 pressurization skid REACTION FORCE : 15 TON MAX FLANGE Ø : 400 mm MIN FLANGE Ø : 90 mm FLANGE THICKNESS MAX : 10 - 65mm TILT ANGLE : 90° BASEMENT WATER VESSEL : 100 Liters ca. TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 5 – Claws only DIMENSIONS (MECH) : 1180 (L) x 1230 (D) x 1060 (H)
