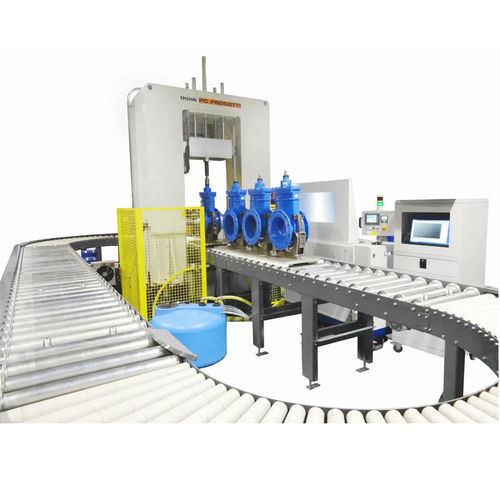

Automatic test bench BO-CV/40SA

valvefor productionhydraulic

Think’PC PROGETTI New test unit designed to perform high speed API / DIN full valve test procedures directly on 2 ways valve production line. Special product support pallets rolling on conveyor, allow perfect alignment. Clamping procedure is fully automatic with 4-axes positioning control, with proportional press clamping to reduce mechanical stress to minimum terms. Valve Opening / Closing movements are even automatic, controlled by torque programmable hydraulic actuator. Rig is configured by TestREC5.2 Windows based software package that can store recipes & test data of each tested product. REACTION FORCE : 40 TON LENGTH MAX : 760 mm LENGTH MIN : 90 mm LOADING HEIGHT : 1250 - 1500 mm (Automatic regulation) BASEMENT WATER TANK : 100 Liters TERMINATIONS ALLOWED : RF, RTJ, BW, SW CLAMPING STYLE : Type 1 - with proportional (option) CLAMPING FORCE CONTROL : Proportional pressing REFERENCE STANDARDS : ISO, DIN, API, ANSI, ASTM, FCI, BS (Other on request). FILLING FLOW : 70L/min VACUUM PUMP : 36m /h (Option) MAX PRESSURE : 100 bar (water) - 12 bar (AIR) PNEUMATIC SUPPLY : 7 bar @ 2000 Nl/min ELECTRIC SUPPLY : 3PH + T, 380V@50Hz,10KW (other on request) DIMENSIONS : 2060(L) x 1160(P) x 4100(H)
