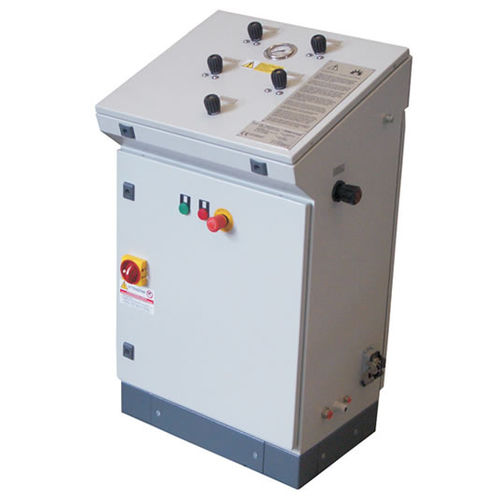

Test bench pressurization skid SKMM-50/GAS/B2

valve

Hydraulic/pneumatic pressurization skid. Controlled by electrical pushbutton on a graphical synoptic panel or manual needle valves (GAS). Every process element is controlled directly by the operator; main safety garrison for wrong maneuvers has been included. This make the SKID very flexible to any testing procedure. Leak could be measured (option) by electronic bubbles counter, high accuracy water column (API) , turbine flow meter and mass flow meter;(FCI 70-2) . Vacuum pump could be installed (option) to assure the absence of air inside valve’s body before filling it with water; in order to reduce test time and increase operator’s safety. All wet process components are stainless steel made and dimensioned for a working pressure of 700bar. It has a high filling flow ability and the recovering of test fluid is automatic. Metal to metal needle valves assure high reliability. A PC windows based for data recording could be included, instrumentation supplied with MODBUS serial interface protocol (TestREC2.0-M). N2 : 200 bar AIR : 200 bar GAS BOOSTER OPT : Available CAVITY TEST : Available ATEX CERTIFICATION OPT. : Available PROCESS STYLE : Bidirectional HP FLUID ALLOWED : GAS (N2, He, AIR) CONTROL SYSTEM : Manual needle valve on graphical synoptic panel PRESSURE MEASURE : Analog pressure gauge REF. STANDARD : API / DIN / BS / FCI AIR / GAS : ANSI Bubbler, Bubbles counter. Volumetric bubbler, Mass Flowmeters WATER : Water column, Digital water column Turbine flowmeters. PROCESS CONNECTIONS : BSPP ¼" ELECTRICAL SUPPLY : 2Ph+G 220V@50Hz 1KW Other available on request DIMENSIONS : 600(L) x 600(P) x 1020(H)
