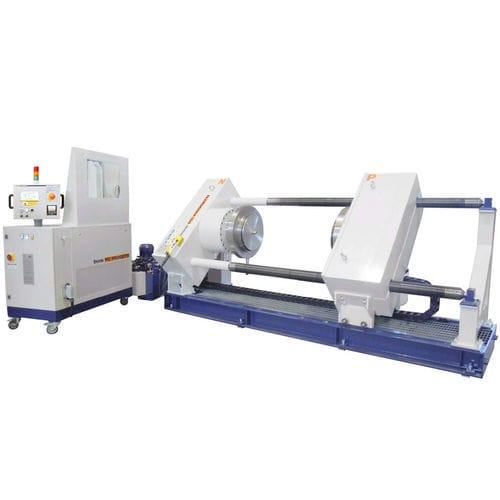

Pressure test bench BO45-2CV/250

leakPLC-controlledPC-controllable

Horizontal test rig with combined clamping style: inner radial seal and proportional press clamping facilities. The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body and an hydraulic cylinder can make press clamping with or without proportional control. This prerogative makes it compliant to the most widespread international test standards. The rig is controlled by SKA-100 pressurization skid REACTION FORCE : 250 TON (10% minimum press clamping) MAX LENGTH : 1750 mm MIN LENGTH : 0 mm COLUMNS INNER CLEARANCE : 1100 mm FLOW AXES HEIGHT : 980 mm BASEMENT WATER VESSEL : 400 Liters ca. TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 3 – Combined Clamping DIMENSIONS : 3500 (L) x 1300 (P) x 1600 (H) mm
