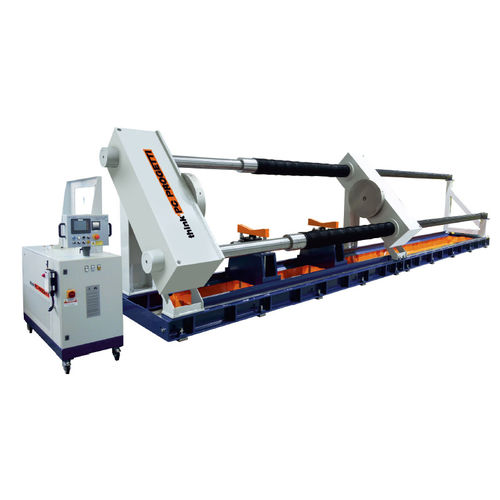

Pressure test bench BOT45-2V/250

leakautomaticmanual

DOUBLE SECTORIZED COLUMNS, EXTERNAL RADIAL SEALS OR AUTOADAPTIVE SEALS CLAMPING Test rigs for pipes with clamping style Nr. 2 “Inner radial seal” or Nr. 8 “Overpressure auto-adaptive seals” for elliptical shape error. Reaction bridges are connected by 2 screwed columns that allow to set up maximum pipe length. The right side reaction bridge is able to run on the entire columns length to cover a wide range of pipe length measures as described in the technical table below. Pipe loading is performed by a crane form the top or horizontally, while Nr.2 hydraulic “V” shaped lifters will support it for the entire test and they are able to center the alignment on seals heads. The basement includes a water vessel with an evaporation limit device (on request). The test benches does not need any foundations. The rig is controlled by a SKA class pressurization skid with 120 L/min water filling ability. REACTION FORCE : 250 TON (See working limits table) PIPE LENGTH MAX : 7200 mm PIPE LENGTH MIN : 2500 mm PIPE MAX DIAMETER : 700 mm FLOW AXES HEIGHT : 1200 mm BASEMENT WATER VESSEL : MAX 3000 Liters LIFTER : See Option SCREW DUST PROTECTION : See Option TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 2 – Bore Plugs Type 8 – Auto adaptive seals DIMENSIONS : 8850 (L) x 1580 (P) x 2000 (H)
