Reclining test bench BOR-2V/600

pressureflowleak

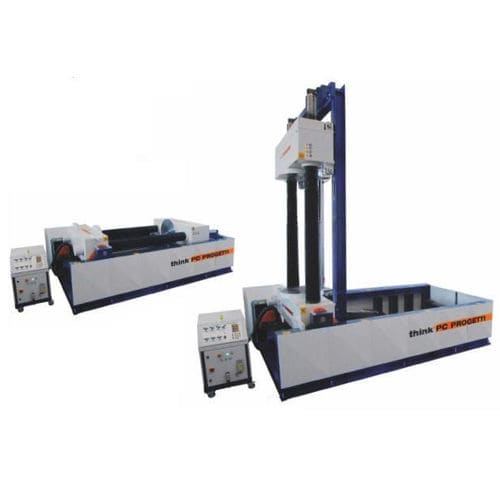

BORE PLUGS W/90° TILTABILITY Horizontal test rig with “bore plug” clamping . The mobile reaction bridge is moved by one screwed column that assures complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards. Besides, valve flow axes can be tilted by 90° according to the test position wanted by the customer. In the basement a water vessel is installed as water reservoir for test procedures. Test process is controlled by a SKA-100 pressurization skid. See dedicate literatures for further details. REACTION FORCE : 600 TON (10% minimum press clamping) (see working limits table) LENGTH MAX : 2500 mm LENGTH MIN : 200 mm COLUMNS INNER CLEARANCE : 1400 mm ROTATION ANGLE : 90° LOADING HEIGHT : Vertical 1380 mm / Horizontal 1200 mm BASEMENT WATER VESSEL : 1000Liters TERMINATION ALLOWED : RF, RTJ, BW, SW CLAMPING STYLE : Type 2 – bore plugs DIMENSIONS (MECH) HORIZONTAL : 2700(L) x 4300(D) x 1520(H) DIMENSIONS (MECH) VERTICAL : 2700(L) x 4300(D) x 4800(H)
