INNER RADIAL SEAL (BORE PLUGS) 3 TEST PLACES WITH AUTOMATIC 1/4″ TURN VALVE ACTUATOR

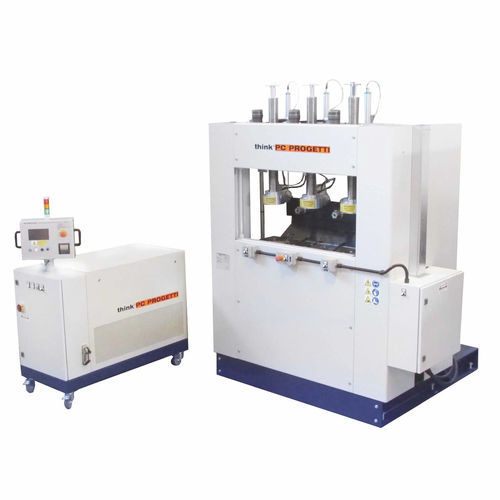

Vertical test rig with inner radial seal clamping style. 3 test places available for multiple pressure test. The screwed columns assure complete absence of external forces on valve body.
This prerogative makes it compliant to the most widespread international test standards. Upper side screwed are moved manually by the operators.
The rig is controlled by a SKA-100 pressurization skid
REACTION FORCE : 3 x 10 TON (10% minimum press clamping)
VALVE LENGTH MAX : 340 mm
VALVE LENGTH MIN : 50 mm
CENTER TO CENTER DISTANCE : 300 mm
MAX FLANGE DIAMETER : 300 mm
LOADING HEIGHT : 1000 mm
BASEMENT WATER VESSEL : 100 Liters ca.
TERMINATIONS ALLOWED : BW, SW, RF, RJ
CLAMPING STYLE : Type 2 – Bore plugs
DIMENSIONS (MECH) : 1200 (L) x 1490 (D) x 1950/2305 (H)
